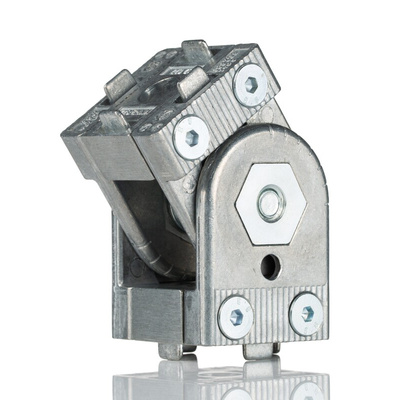

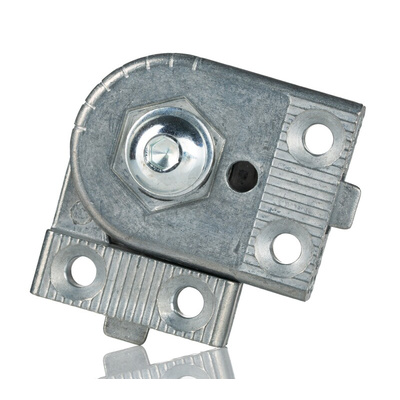

3842502684, Bosch Rexroth Joint Clamp Connecting Component, Strut Profile 45 mm, Groove Size 10mm

Joint

Joint for rigid or movable 30x30, 40x40 or 45x45 profile connections at any angle of your choice within 182°
designLINE Joint with special silver paint for an attractive high-quality design for all MGE fixtures. Also available in economical die-cast finish.
With a 15° graduation
No profile end finishing preparation

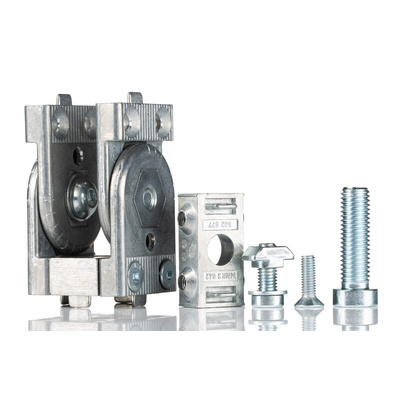

Fasteners are included, except for the bolt connector 437-1514 for the 30x30 Joint
30x30 accepts bolt connector 437-1514, not provided
40x40 and 45x45 accepts S12x30mm fastener provided
Material: Joint: 30 & 45 Die-cast Zinc and 40 Die-cast Aluminium, nickel plated ; Fastening parts: galvanized steel

Bosch Rexroth Connecting Component, Joint Clamp Type, 180° Swivel Angle - MGE Series - 3842502684

Need a durable connecting solution to link strut profiles in your work area? Go for this joint clamp from Bosch Rexroth. You can use it with a straight pin for rigid connections, or with a clamping lever for adjustable structures, so it's a jack of all trades that's suitable for numerous construction jobs. Thanks to a 180° swivel angle, you get a wide range of motion, which comes in handy for devices such as grab containers.

Features & Benefits

• Steel body is durable and can withstand impact, making it practical in harsh environments
• 15° increment markings help you keep a keen eye on the swivel angle

Applications

• Mechanical workshops
• Foundries
• Oil and gas industries

How much does this joint clamp connector weigh?

This unit weighs just 760g, so it's no sweat to handle during installation and won't add load to your structure.
