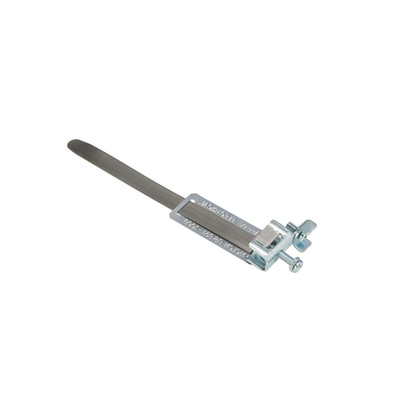

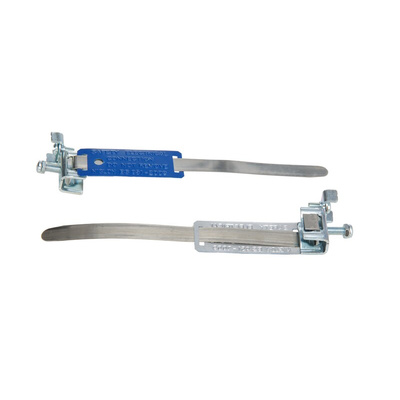

RS PRO Earth Clamp Metal 12 mm → 32 mm Diameter
The RS PRO earth metal clamp protects electrical equipment and people working on electrical applications from shocks or power surges by diverting or grounding excess current.
It has a diameter of 12 mm to 32 mm and is made from zinc-plated phosphor bronze. This plating gives it good resistance to corrosion, so the clamp is useful for damp or chemical-laden conditions. It has a stainless steel strap and is supplied with an aluminium label embossed with a safety warning that is bolted onto the clamp. The earth clamp has a maximum wire cross-section area of 10 mm² and meets electrostatic control standards for reduction of electrostatic shock.
The earthing strap and clamp encircle the component you are working on and must be connected to a ground conductor with an earthing wire. It's also commonly used as an antistatic device to prevent damage to equipment.
Features and Benefits
• Metal earth clamp
• Maximum wire cross-section area of 10 mm²
• Minimum diameter of 12 mm
• Maximum diameter of 32 mm

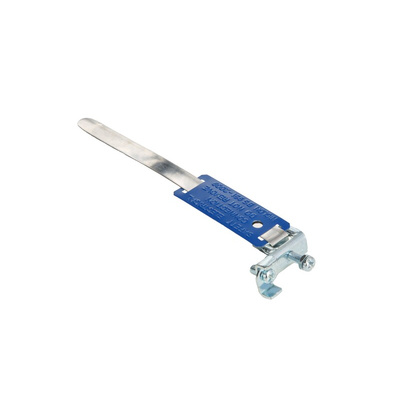

• Supplied with an aluminium label embossed with "Safety Electrical Connection Do Not Remove"
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) Compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Supplied with
type":"Supplied with",
An Aluminium Label Embossed "Safety Electrical Connection Do Not Remove"
Техническая спецификацияRS Pro Datasheet
