8473000000, Weidmuller ACT20X Series Signal Conditioner, RTD Input, Current Output, 9 → 30V dc Supply

Weidmuller Signal Conditioner, DIN Rail Mounting, 4 to 20mA Output Current Range - ACT20X Series - 8473000000

Need to pick up on your system's temperature readings? Make sense of its signals with this Weidmuller signal conditioner. By turning RTD readings into an analogue output, it bridges the gap between your temperature sensor and controller for hassle-free data logging. Thanks to its reading accuracy of ±0.5%, you can count on it to produce precise results every time. An output current range of 4 to 20mA makes the unit a handy fit for low-power systems. A response time of 10ms means you get rapid-fire results for up-to-date monitoring.

• DIN rail mounting for swift installation without the need for special tools
• Compact dimensions of 91 (L) x 63.2 (W) x 6mm (D) for installation in tight spaces
• Secure tension-clamp terminals to minimise the risk of disconnection
• Wide temperature input range between -50°C and +150°C for versatility

Applications

• HVAC systems
• Automotive manufacturing
• Food production

How do I identify the connections on this unit?

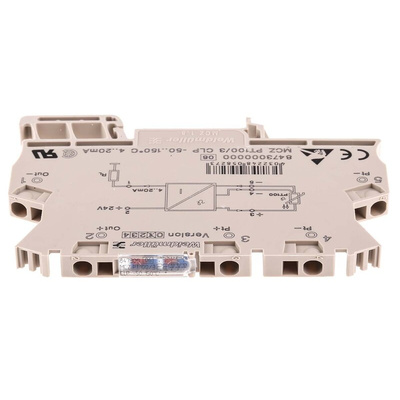

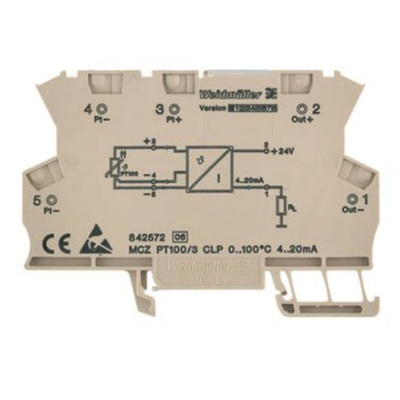

This signal conditioner comes with a labelled front plate, so it's a piece of cake to check where your connections link up.

CSA LR12400-385

UL E141197

Datasheet
