8473010000, Weidmuller ACT20X Series Signal Conditioner, RTD Input, Current Output, 9 → 30V dc Supply, Реле

Weidmuller Signal Conditioner, Temperature Converter, 0°C to +200°C Input Temperature Range - ACT20X Series - 8473010000

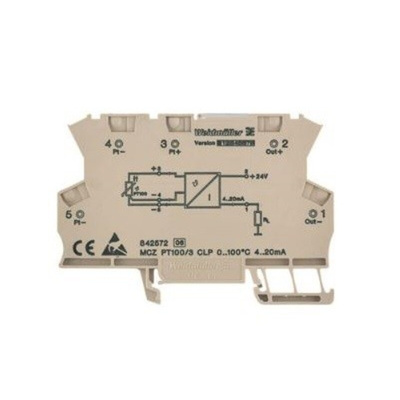

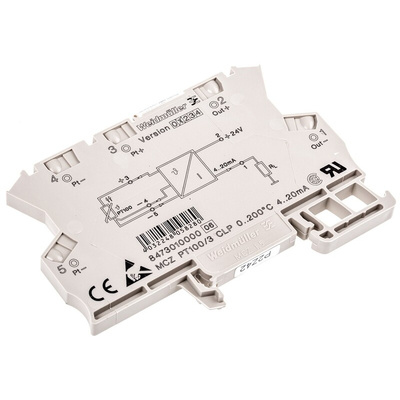

Keep your signals in top form with this signal conditioner from Weidmuller. It allows you to convert a temperature reading from a PT100-type RTD sensor into a current output signal that your equipment can use. The module is easy to install, as it uses a simple tension clamp connection and clips onto a DIN rail. Thanks to a wide temperature input range between 0°C and +200°C, you can use this module in demanding applications.

Features & Benefits

• Compatible with two and three-wire PT100 sensors for versatility
• Accepts wire sizes between 22 and 12AWG for broad compatibility
• Supply voltage range between 9 and 30V DC for use in low-power systems

Applications

• Factory automation
• Energy production
• Transportation sector

How does an RTD temperature sensor work?

RTD sensors contain a strip of metal. The metal's resistance increases as its temperature increases. When electricity passes through the sensor, it measures the level of resistance to the current, converting it to a temperature reading based on the properties of the element used.

Data Sheet

CSA LR12400-385

UL E141197

3930184_Catalogue
