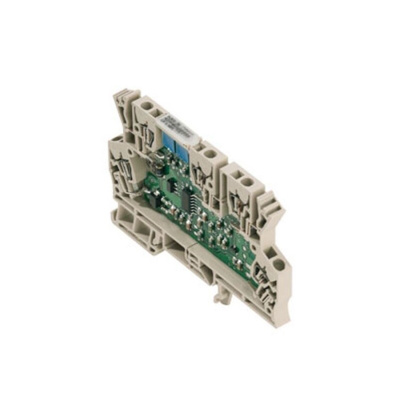

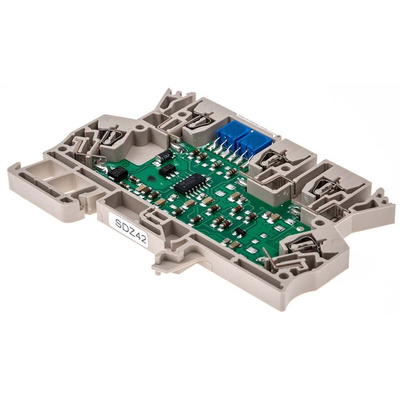

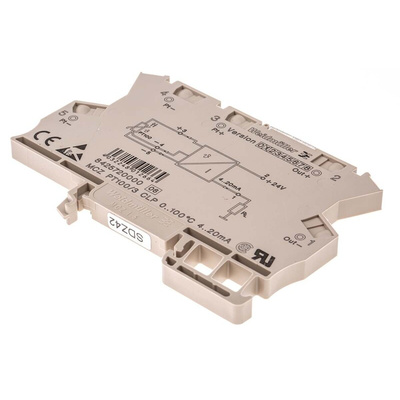

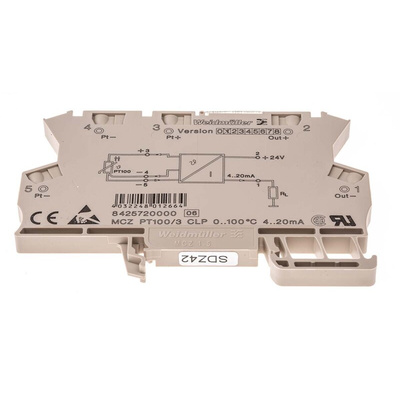

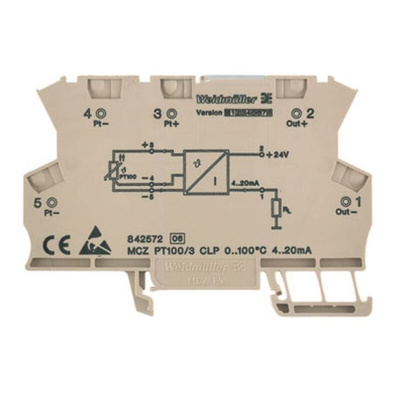

8425720000, Weidmuller ACT20X Series Signal Conditioner, RTD Input, Current Output, 30V Supply

Weidmuller Signal Conditioner, 0°C to +100°C Input Temperature Range, DIN Rail Mounting - MCZ Series - 8425720000

Turn raw temperature readings into usable data with this signal conditioner from Weidmuller. You can use it to convert input signals from a two or three-wire RTD temperature sensor (611-8264) into a current output for your data acquisition system. As it mounts directly onto a DIN rail, you can install it in a jiffy without the need for any special tools. Thanks to a broad input temperature range between 0°C and +100°C, this piece of kit is an all-rounder for your temperature conversion needs.

Features & Benefits

• Tension clamp provides a reliable electrical connection
• Functions reliably in harsh environments, thanks to a wide operating temperature range between -25°C and +50°C
• High accuracy rating of 0.2% for readings you can depend on
• Supply voltage of 30V for use in low-power applications

Applications

• Food and beverage production
• Chemical plants
• Industrial engineering
• Sound amplification

What's the output current range of this signal conditioner?

It has an output current range between 4 and 20mA, so it's a great shout for low-current devices.

Data Sheet

CSA LR12400-385

UL E141197

Instruction Sheet - 8425720000

Catalogue - Analogue Signal Conditioning
