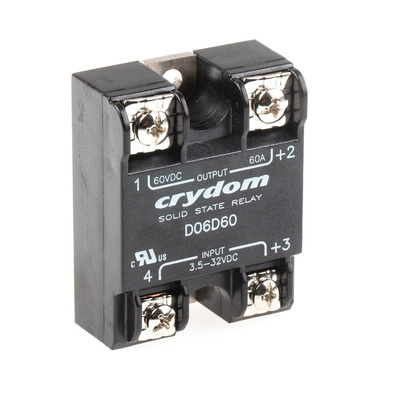

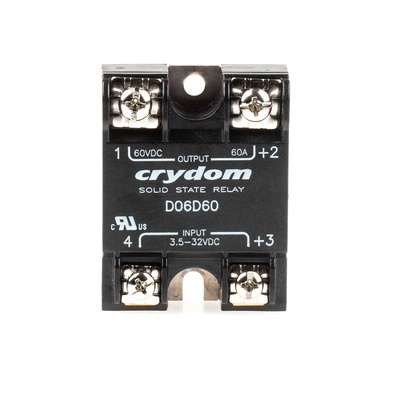

D06D60, Sensata / Crydom Solid State Relay, 60 A Load, Surface Mount, 60 V dc Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 60A Rated Load Current, 1 to 60V DC Operating Voltage Range - D06D Series - D06D60

Regulate electrical loads in your circuits with this solid-state relay from Sensata | Crydom. It doesn't use movable contacts, so it's less prone to wear than an electromechanical relay. Thanks to its maximum turn-on time of just 100μs, it provides quick switching to minimise downtime and enhance efficiency. A dielectric strength of 3750Vrms means this device is properly insulated for protection against electric shocks. You'll commonly find a relay like this one installed in soldering equipment and packaging machines.

Features & Benefits

• Broad operating temperature range between -40°C and +100°C for use in demanding settings
• MTBF of more than 11.5 million hours at +60°C for reliable, long-term use
• Maximum I/O capacitance of 8pF offers clear, high-integrity output signals
• Light weight of 75.5g to place minimal strain on your equipment

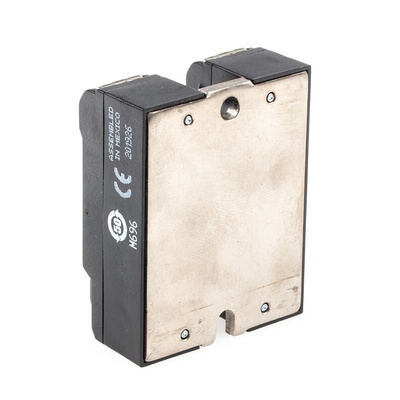

• Aluminium baseplate for resistance to impact and corrosion

Is this device flame-retardant?

Yes, this device has flame-retardant properties and will self-extinguish in 10 seconds, making it a safe option in the event of a fire.

Approvals

UL; CE; ISO
