D06D80, Sensata / Crydom D06D Series Solid State Relay, 80 A Load, Surface Mount, 60 V dc Load, 32 V Control, Реле

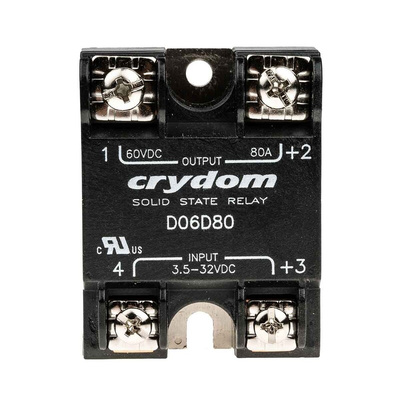

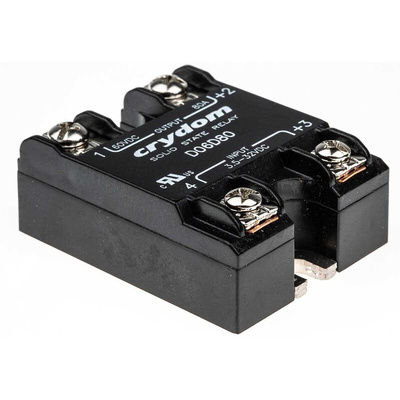

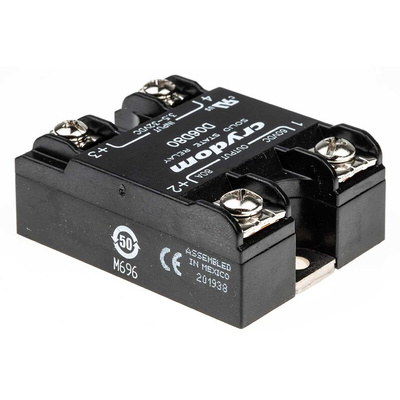

Sensata | Crydom Solid-State Relay, Aluminium Baseplate, 75.5g Weight - D06D Series - D06D80

Take charge of heavy-duty loads with this solid-state relay from Sensata | Crydom. You can use it to switch your circuits on and off in a flash. The component has no moving parts, which means it's immune to mechanical wear, so it doesn't need regular maintenance. Thanks to its compact dimensions of 57.3 (L) x 44.5 (W) x 22.6mm (D), you'll have no problem fitting this relay into tight spaces. Use it to remotely control lamps in your industrial equipment.

Features & Benefits

• Wide operating temperature range between -40°C and +100°C for use in challenging conditions
• MTBF of over 21 million hours at +40°C for long-term performance
• Screw termination lets you create a secure electrical connection using a simple screwdriver
• Low I/O capacitance of 8pF for high-integrity signals

How do I keep this relay cool during operation?

You should link this unit with a heatsink (703-4552) to prevent overheating and keep it working optimally.

What's the rated load current of this relay?

This SSR has a rated load current of 80A, making it suitable for use in heavy-duty applications.

Approvals

ISO

DC Switching

Datasheet

Solid State Relay - CE-Declaration of Conformity

Declaration of Conformity 2014/35/EU

Instruction Sheet - DC OUTPUT

Line Drawing - D06D80
