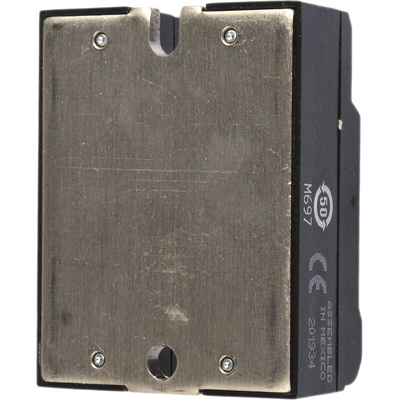

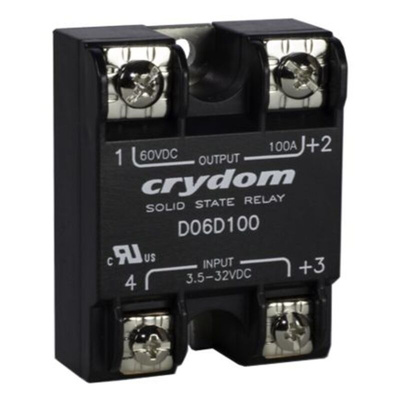

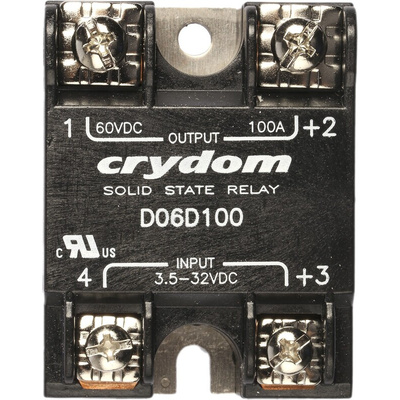

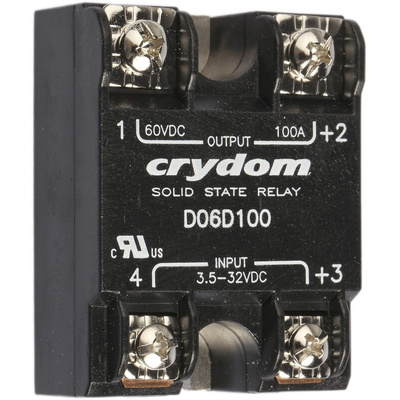

D06D100, Sensata / Crydom D06D Series Solid State Relay, 100 A Load, Surface Mount, 60 V dc Load, 32 V Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid-State Relay, 10 to 15mA Input Current, 100A Rated Load Current - D06D Series - D06D100

Looking for a reliable way to manage your high-current appliances? Choose this Sensata | Crydom solid-state relay. It uses electrical signals to switch loads of up to 100A, making it suitable for use in heavy-duty applications. As there are no moving parts, there's minimal risk of wear for a long service life. It turns on in 100μs and powers down in 150μs, so it quickly reacts to your system's inputs. The device has a flame-retardant housing for safety in the event of a fire. SSRs like this are found in electric motors and measuring instruments.

Features & Benefits

• Front plate labels identify conductor terminals for easy wiring
• Low capacitance of 8pF for minimal signal interference
• Compact dimensions of 44.5 (L) x 22.6 (W) x 57.3mm (H) for installation in tight spaces
• Off-state current leakage of 0.3mA to limit energy usage
• Wide operating temperature range between -40°C and +100°C for use in demanding settings

Does this solid-state relay come with a heat sink?

No, this unit doesn't come with a heat sink, so you should install one to ensure effective heat dissipation.

Approvals

ISO

DC Switching

Solid State Relay - CE-Declaration of Conformity

Datasheet

Declaration of Conformity 2014/35/EU

Instruction Sheet - D06D100

Line Drawing - D06D100
