226900 P1-25/I2H/SVB, Eaton 3P Pole Surface Mount Isolator Switch - 25A Maximum Current, 13kW Power Rating, IP65

Eaton Isolator Switch, 690V AC Voltage Rating, Red Rotary Handle - 226900 P1-25/I2H/SVB

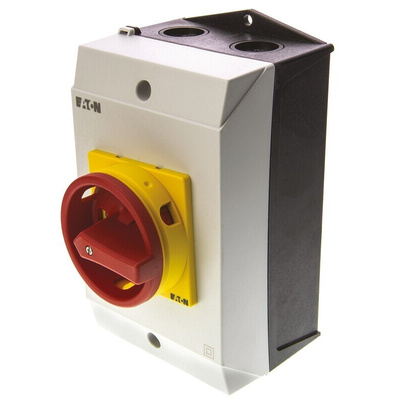

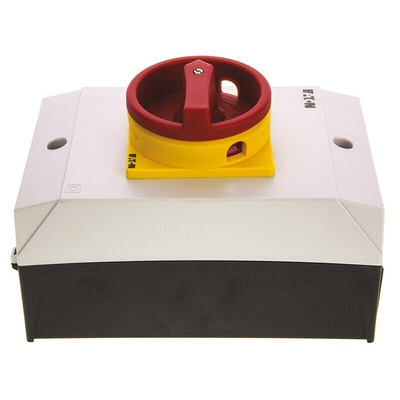

When things get critical, stay in control with this isolator switch from Eaton. It's a maintained switch with an off position, so gives you a way to manually disconnect power. A red rotary handle and yellow locking ring mean you'll have no trouble spotting this component in a busy setup. Holes in the handle let you secure it in the off position with a padlock until it's safe to switch back on. To boost electrical protection, it's fully insulated and fused, while screw terminals achieve dependable wiring. You'll find switched likes this used for servicing and troubleshooting automated machines in the processing, manufacturing and plant industries.

• Mechanical durability of 300,000 operations for longevity
• IP65 rating indicates it's dust-tight and resistant to low-pressure water jets from any angle
• Compact dimensions of 180 (L) x 100 (W) x 115mm (D) take up minimal space

How do I mount this isolator switch?

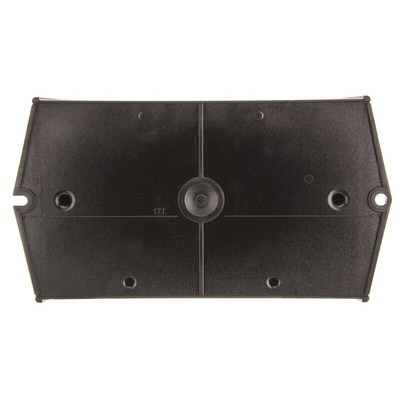

The unit is boxed in a robust housing with an integrated mounting frame for simple surface mounting on a control panel.

What's the operating temperature of this switch?

A broad operating temperature range of -25°C to +50°C means it can handle demanding conditions.

Note

Eaton formerly known as Moeller

P Switch Disconnectors Dimensions

P1-25/I2H/SVB Data Sheet

Instruction Sheet - 226900 P1-25/I2H/SVB

Catalogue - P Switch-Disconnectors And T Rotary Cam Switches
