Fluke 177 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

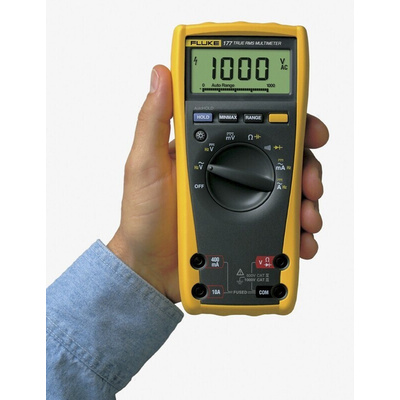

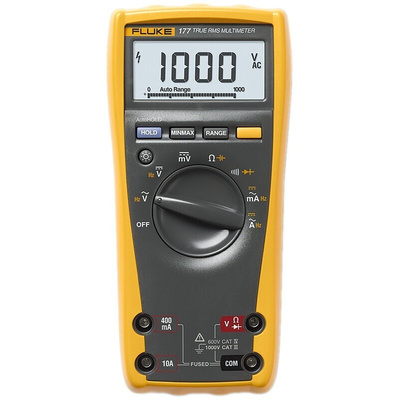

Fluke 177 True-RMS Digital Multimeter

Brought to you by Fluke, the 177 model is part of the versatile 170 series of Digital Multimeters. Suitable for a variety of measurement applications, the 177 is supplied with a TL76 test lead, instruction manual and 9v alkaline batteries. This model also features a display backlight for easier measurement reading.

Fluke 177 Features and Benefits

• 6000 count LCD with 33 segment bargraph
• True rms (a.c.) measurement
• EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
• Resistance, continuity and diode measurement
• Capacitance measurement up to 10000μF
• Frequency measurement up to 100kHz
• Min/Max/Average recording
• Display and Auto Hold
• Separate battery and fuses access without breaking the calibration seal
• Compatible with Fluke Toolpak™ magnetic hook and strap hanger kit (stock no. 331-7402)

Additional Specifications

• DC Current Accuracy: ±1 %
• DC Current Digits: +3 D
• DC Current Lowest Range: 60mA
• DC Current Highest Range: 10A
• DC Current Lowest Resolution;0.01mA
• AC Current Accuracy: ±1.5%
• AC Current Digits: +3 D
• AC Current Lowest Range: 60mA
• AC Current Highest Range: 10 A
• AC Current Lowest Resolution: 0.01mA
• AC Current Max Frequency: 1kHz
• Resistance Accuracy: ±0.9% / ±0.7%
• Resistance Digits: +1 D / + 2 D

Typical Applications

Fluke Digital Multimeters are a standard diagnostic tool and an ideal choice for technicians in the electrical/electronic industries. The 177 model measures AC and DC voltage 1000V and True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements.

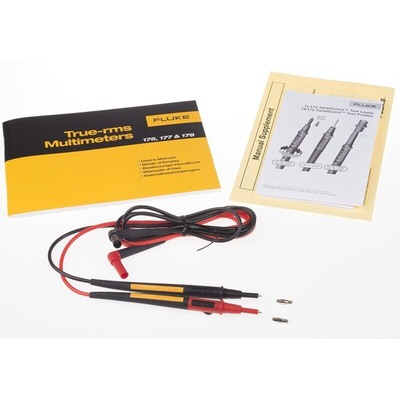

Supplied with

Fluke 177 Digital Mutlimeter
(1 pair) Test leads
9V Battery (Installed)
Quick reference guide

FLUKE Multimeter, 6000 Counts, 200h Battery Life - 170 Series - Fluke 177

On the lookout for a multifunctional DMM? Reach for this multimeter from FLUKE. As it's a digital device with True-RMS technology, you can count on it to give you accurate measurements of AC and DC voltages and currents (up to 1000V and 10A) as well as resistance (

Features & Benefits

• Offers continuity test function that lets you see quickly if a circuit's open or closed
• Comes ready to go with TL75 test leads (4mm lantern clips), 9V battery and user manual
• Long battery life of 200h
• 6000 count meter displays high values
• Backlight helps you read values in dark conditions

Applications

• Research and development labs
• Electrical installation
• DIY jobs
• Battery testing

What does this multimeter's auto-manual ranging mean?

This DMM's versatile auto-manual ranging gives you the option of setting a measurement range yourself or letting the instrument find it automatically.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Fluke True RMS Digital Multimeter Models 175, 177, 179 Data sheet

Fluke True RMS Digital Multimeter Models 175, 177, 179 User Manual

Manual - Fluke 177
