Fluke 179 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

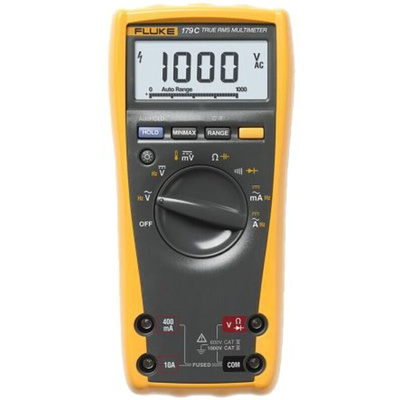

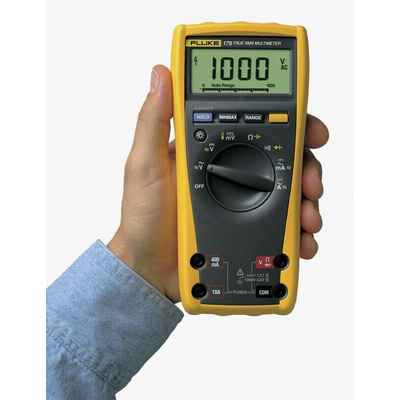

Fluke 179 True-RMS Digital Multimeter

Brought to you by Fluke, the 179 model is part of the versatile 170 series of Digital Multimeters, and includes an 80BK type K bead thermocouple probe with integral adaptor. Suitable for a variety of measurement applications, the 179 is supplied with a TL76 test lead, instruction manual, 9V alkaline batterry. This model also features a display backlight for easier measurement reading.

Fluke 179 Features and Benefits

• 6000 count LCD with 33 segment bargraph
• True rms (a.c.) measurement
• EN61010-1 safety standard compliance to Cat IV 600V & Cat III 1000V
• Resistance, continuity and diode measurement
• Capacitance measurement up to 10000μF
• Frequency measurement up to 100kHz
• Min/Max/Average recording
• Display and Auto Hold
• Separate battery and fuses access without breaking the calibration seal
• Compatible with Fluke Toolpak™ magnetic hook and strap hanger kit (stock no. 331-7402)

Addtional Specifications

• DC Current Accuracy: ±1 %
• DC Current Digits: +3 D
• DC Current Lowest Range: 60mA
• DC Current Highest Range: 10A
• DC Current Lowest Resolution;0.01mA
• AC Current Accuracy: ±1.5%
• AC Current Digits: +3 D
• AC Current Lowest Range: 60mA
• AC Current Highest Range: 10 A
• AC Current Lowest Resolution: 0.01mA
• AC Current Max Frequency: 1kHz
• Resistance Accuracy: ±0.9% / ±0.7%
• Resistance Digits: +1 D / + 2 D

Fluke 177 and 179 are true-RMS Digital Multi-meter provides the right features for electrical maintenance experts, the industry standard trouble shooting multi-meter.

Fluke 177 (RS 3944486) and Fluke 179 offer precision, reliability and are easy to use making this range the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 179 includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems. With the Fluke 177 and 179 Digital Multi-meters you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analogue bar graph and backlight. Plus a limited lifetime warranty.

Added Features

Digital display with backlight for working in dim lighting Closed case calibration through front panel
Ergonomic case with integrated protective holster

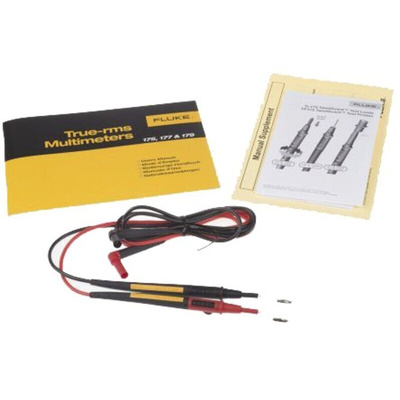

Contents

179 Digital Multimeter
80BK Temperature Probe
Installed 9V battery
Test leads
Quick Reference Guide

FLUKE Multimeter, LCD Screen, 3.5 Digit Reading Resolution - 170 Series - FLUKE 179

Keen to put your electronic equipment through its paces? Test it with this multimeter from FLUKE. By monitoring current, voltage, resistance and capacitance, the unit gives you comprehensive testing capabilities to catch all kinds of faults. As its digital display shows readings as easy-to-read numbers, recording data is hassle-free. Setting the right scale for the job at hand is no trouble, thanks to the automatic range-finding function. With this meter's AC current accuracy of ±1.5% + 3 counts, you can be sure it collects the precise readings you need to keep your system running safely and efficiently.

Features & Benefits

• Saves maximum, minimum and average measurement values for easy future reference
• Measures temperatures between -40°C and +400°C, reliably monitoring extreme conditions
• Automatic 33-segment bar graph function for clear visual data display
• Robust plastic casing resists damage from impacts when you're out in the field

Applications

• Laboratory testing
• Device repair
• Lighting systems

Do I need to link a temperature probe to this multimeter?

No, the device comes with a temperature probe so you have immediate access to all its testing features.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Datasheet

Fluke True RMS Multimeters Models 175, 177, 179 User Manual

Fluke True RMS Multimeters Models 175, 177, 179 Technical Data
