RS PRO Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT, Реле

RS PRO, 12 V DC Coil Non-Latching Relay 4 PDT, 5 A Switching Current Plug In, 4 Pole

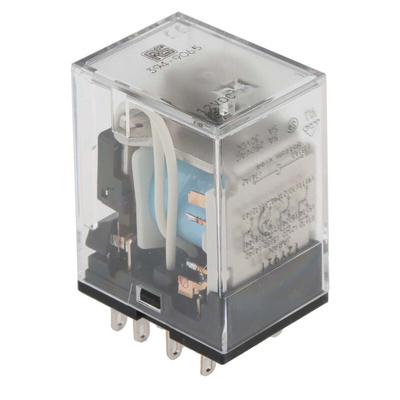

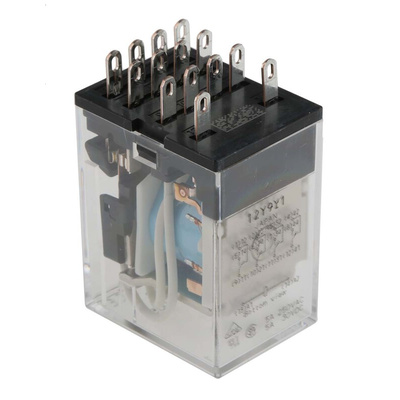

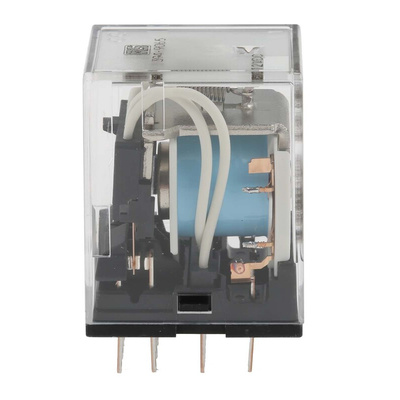

Non-latching relays are found in many push-button applications, such as keyboards. This plug-in relay from RS PRO is highly versatile and boasts long-lasting performance. It has a coil voltage of 12 V DC and can withstand currents up to 5 A.

The power component features gold-plated contacts offering high electrical conductivity, corrosion resistance and good solderability, with a four-pole double-throw configuration. It can operate at temperatures ranging from -55°C to +70°C. You can be sure this product is safe to use as it's UL recognised, having been tested by Underwriters Laboratories, a global safety certification company.

RS PRO stocks a range of both latching and non-latching relays. Non-latching relays switch to a NO (normally on) position by using an internal coil to generate a magnetic force that's maintained until the current is switched off. They are widely used in household appliances and automotive engines.

Features and Benefits

• Non-latching, 4-pole plug in relay with single contact
• Operating temperature range of -55°C to +70°C
• Contact configuration of 4PDT
• Maximum switching power of 1.25 kVA (AC)
• Maximum switching voltage rating of 125 V (DC)
• Switching current rating of 5 A
• Isolation coil to contact of 2 kV AC
• Maximum switching power of 150 W (DC)
• Gold plated contacts
• Life of 100000000 mechanical cycles and 200000 electrical cycles
• Coil power of 900 mW
• Maximum switching voltage of 250 V AC
• Coil Voltage of 12 V DC
• Coil resistance of 160
• Through hole terminal
• Dimensions: 36 mm x 21.5 mm x 28 mm
• UL recognised
• Meets CE (Conformité Européenne) and CSA (Canadian Standards Association) standards for electrical products
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; VDE; CSA
