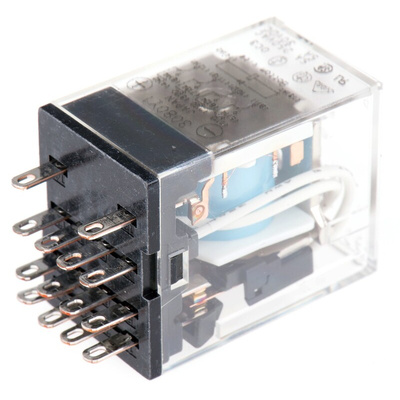

RS PRO Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT, Реле

RS PRO Non-Latching Relay, Plug-In, 4PDT, 24 V DC Coil, 5 A Switching Current

This non-latching relay from RS PRO is a straightforward way to control a circuit. As a non-latching relay, it switches back to the 'normally closed' (NC) position in the absence of electric current, making it easy to open and close circuit connections.
This relay has a lifespan of 100,000,000 mechanical cycles and 200,000 electrical ones, so it's a reliable and long-lasting product that won't degrade in quality over time. It also features ultra-high sensitivity and a quick response time for your circuit controls, making it highly efficient.
The plug-in mounting means it's quick and easy to install, and the transparent housing makes it easy to inspect without taking it apart. This type of relay is ideal for use in push-button applications.

Features and Benefits

• Power application
• Coil power of 900 mW
• Coil resistance of 636 Ω
• Coil voltage of 24 V DC
• Four pole, double throw contact configuration
• Gold-plated contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 2 kV AC
• Operating temperature range of -55°C +70°C
• Maximum switching power (AC) of 250 V, 1.25 kVA
• Maximum switching power (DC) of 125 V, 150 W
• Plug-in mounting type
• Four poles
• Non-latching relay switching classification
• Diode
• Meets European Conformity (CE), Canadian Standards Association (CSA), and Restriction of Hazardous Substances (RoHS) standards
• Switching current of 5 A
• Through-hole terminal type

Approvals

UL; VDE; CSA
