RS PRO Plug In Non-Latching Relay, 24V ac Coil, 5A Switching Current, 4PDT, Реле

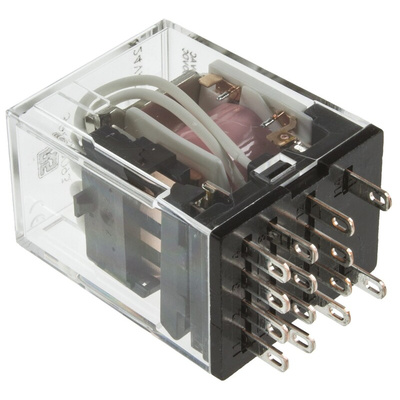

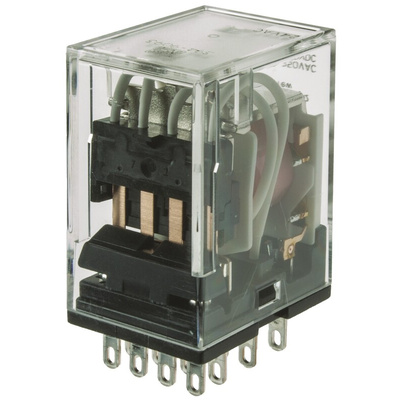

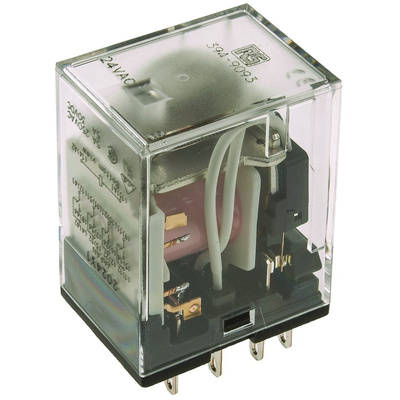

RS PRO Non-Latching Relay, Plug-In, 4PDT, 24 V AC Coil, 5 A Switching Current

If you need a simple way to control a circuit, turn to this RS PRO non-latching relay. In the absence of electric current, it switches automatically back to the NC (normally closed) position. This makes it easy to open and close circuit connections.


This relay is highly efficient, as it has a quick response time and ultra-high sensitivity. It's also long-lasting and reliable thanks to its lifespan of 200,000 electrical cycles and 50,000,000 mechanical ones. Its transparent housing means you can inspect it without taking it apart.


The unit is quick and easy to install by simply plugging it in. Relays like this one are often used in push-button applications.

Features and Benefits

• Power application


• Coil power of 1.2 W


• Coil resistance of 180 Ω


• Coil voltage of 24 V AC


• Four pole, double throw (4PDT) contact configuration


• Gold-plated contact material


• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)


• Isolation coil to contact of 2 kV AC


• Operating temperature range of -55°C to +70°C


• Maximum switching power (AC) of 250 V, 1.25 kVA


• Maximum switching power (DC) of 125 V, 150 W


• Plug-in mounting type


• Four poles


• Non-latching relay switching classification


• Single contact


• Meets European Conformity (CE), Canadian Standards Association (CSA), and Restriction of Hazardous Substances (RoHS) standards


• Switching current of 5 A


• Through-hole terminal type

Approvals

UL; VDE; CSA
