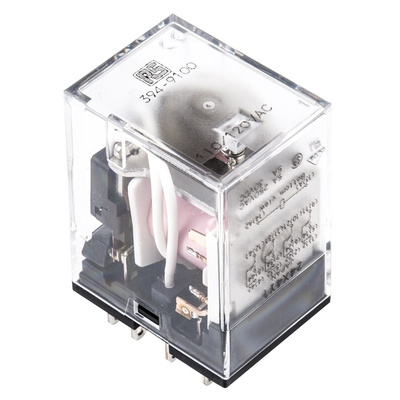

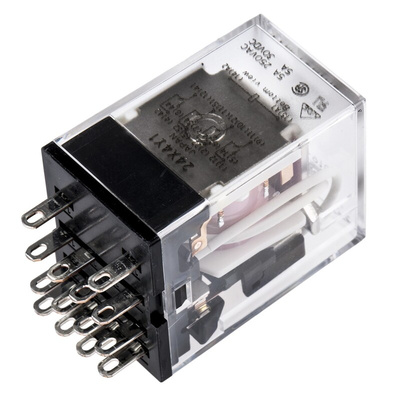

RS PRO Plug In Power Relay, 120V ac Coil, 5A Switching Current, 4PDT, Реле

RS PRO, 120 V AC Coil Non-Latching Relay 4PDT, 5 A Switching Current Plug In, 4 Pole

This plug-in relay from RS PRO is an electrical switch used to open and close a circuit. As a non-latching relay, it will stay in a normally closed (NC) position until power passes through it when it will switch to a normally open (NO) position. It is long-lasting and high performing, has a coil voltage of 120 V AC and can withstand currents up to 5 A. Latching and non-latching relays are widely used in household appliances and automotive engines.

This device will operate safely at temperatures ranging from -55°C to +70°C. The power component has highly-conductive, gold-plated contacts with also offer corrosion resistance and good solderability. It comes in a four-pole double-throw configuration.

Rest assured that this product is safe to use as it's UL recognised, having been tested by Underwriters Laboratories, a global safety certification company. Non-latching relays are found in many push-button applications, such as keyboards.

Features and Benefits

• Non-latching, 4-pole plug-in relay with single contact
• Operating temperature range of -55°C to +70°C
• Contact configuration of 4PDT
• Maximum switching power of 150 W
• Maximum switching voltage rating of 125 V (DC)
• Switching current rating of 5 A
• Isolation coil to contact of 2 kV AC
• Maximum switching power of 150 W (DC)
• Gold plated contacts
• Life of 100000000 mechanical cycles and 200000 electrical cycles
• Coil power of 1.1 W
• Maximum switching voltage of 250 V AC
• Coil Voltage of 120 V AC
• Coil resistance of 4.43 kΩ
• Through-hole terminal
• Dimensions: 36 mm x 21.5 mm x 28 mm
• UL recognised
• Meets CE (Conformité Européenne) and CSA (Canadian Standards Association) standards for electrical products
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; VDE; CSA
