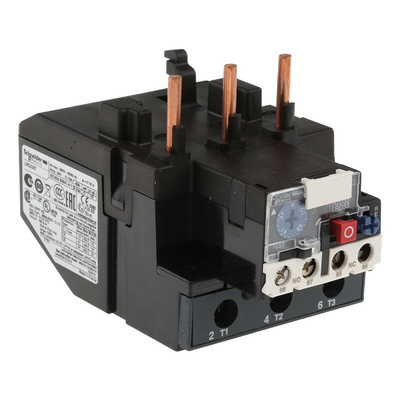

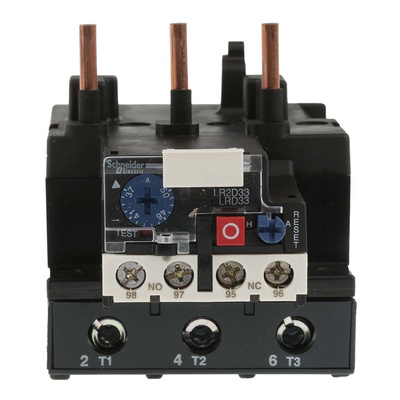

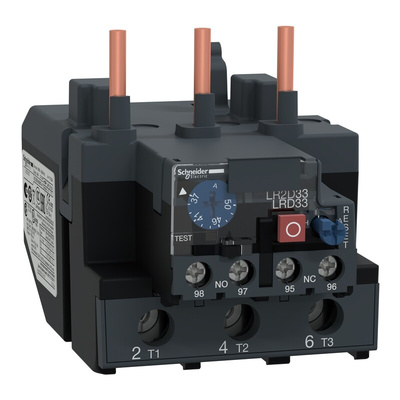

LRD3357, Schneider Electric LRD Thermal Overload Relay 1NO + 1NC, 37 → 50 A F.L.C, 50 A Contact Rating, 3P, TeSys, Реле

Three-pole Thermal Overload Relays

Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor.

Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV

Schneider Electric Thermal Overload Relay, Adjustable, 690V AC Contact Voltage Rating - TeSys Series - LRD3357

Beat the heat from excess current in your electric motor using this thermal overload relay from Schneider Electric. When it senses a current overload, this unit causes the contacts to change state, keeping power from flowing to the circuit. You can adjust the thermal protection range between 37 and 50A to match the needs of your motors. Thanks to a built-in trip button, you can put this device to the test by simulating tripping to make sure that it's working correctly.

Features & Benefits

• Lockable cover helps keep unauthorised users out
• Resistance to shock and vibration to withstand demanding operations
• Front-facing flag indicator for convenient status monitoring

Applications

• Construction equipment
• Medical technology
• Mining and quarrying industries

How do I mount this relay?

You can mount the relay directly by inserting its plug into a socket on your contactor.

How do I configure this relay?

To configure this relay, use the blue push button to reset it after it trips and the red push button to stop it in the event of an emergency.

UL E164353

CSA 43364
