LRD32, Schneider Electric LRD Thermal Overload Relay 1NO + 1NC, 23 → 32 A F.L.C, 32 A Contact Rating, 600 V, 3P, TeSys, Реле

Schneider Electric Differential Thermal Overload Relays - TeSys LRD Range

Schneider Electric TeSys range of three-pole thermal overload relays have been designed and created for motor protection, phase failure, long starting times and prolonged stalling of the motor.

This range of thermal overload relays features an adjustable relay setting dial, test and stop buttons, trip indicator, sealable cover and much more. The LRD's are 3-pole thermal overloads relays that can be used to protect motors that live within an explosive environment or atmosphere, they are ATEX-certified in all connector versions.

Features & Benefits

• Must be installed outside ATEX zones
• Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
• AC and DC network types
• These devices will commonly be called after their short name - LRD
• Feature a rated insulating voltage of 600 V power circuit conforming to CSA, 600 V power circuit conforming to UL and 690 V power circuit conforming to IEC 60947-4-1
• Network frequency of 0...400 Hz
• The option to mount directly beneath a three-pole contactor, independent mounting on DIN rail with specific accessories and plate with certain accessories
• Rated operational voltage is 690 V AC 0...400 Hz
• The control type is a red push-button stop and blue push-button for reset mode
• Temperature compensation is -20...60 °C
• These products have an IP protection rating of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• Standards - ATEX D 94/9/CE, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
• certifications - ATEX INERIS, BV, CCC, CSA, DNV, GL, GOST, LROS (Lloyds register of shipping), RINA, UL

Schneider Electric Thermal Overload Relay, For AC and DC Networks, 124g Weight - TeSys LRD Series - LRD32

Is your motor getting hot under the collar? Minimise the chance of it overheating with this thermal overload relay from Schneider Electric. The unit stops a three-phase motor from drawing excessive current, which extends the lifespan of your device. Manually setting is a cinch, thanks to the red and blue start and reset buttons. A dielectric strength of 6kV provides superior insulation to protect you against electric shocks. This versatile relay also quickly detects phase failure and load unbalance, so it makes you aware of a problem before equipment damage occurs.

Features & Benefits

• Compatible with both AC and DC networks for versatility
• Screw clamp terminals offer easy wiring using only a screwdriver
• End-of-life optimised to reduce the amount of waste sent to landfill
• Thermal adjustment range between 23 and 32A so you can choose your ideal protection level

Applications

• Automotive manufacturing
• Oil and gas industries
• Industrial control motors
• Textile production

Is this thermal overload relay resistant to vibration?

Yes, the device resists vibration and shock, making it a practical choice for harsh operating conditions.

UL E164353

CSA 43364

Datasheet

Product Change Notice (PCN)

Product Environmental Profile

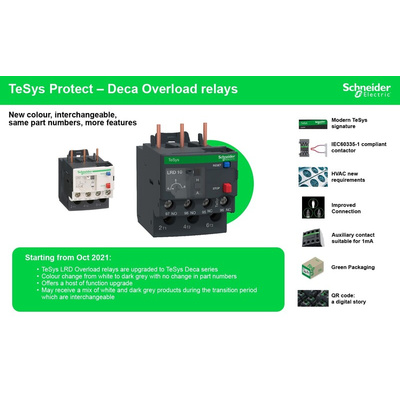

Guide - TeSys Protect - Deca Overload Relays
