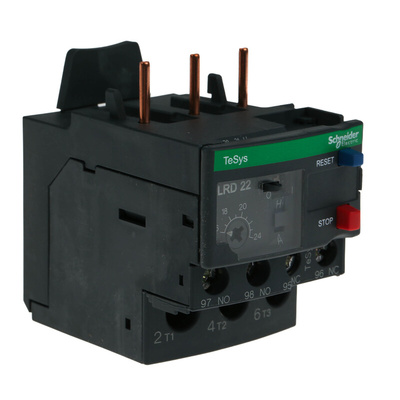

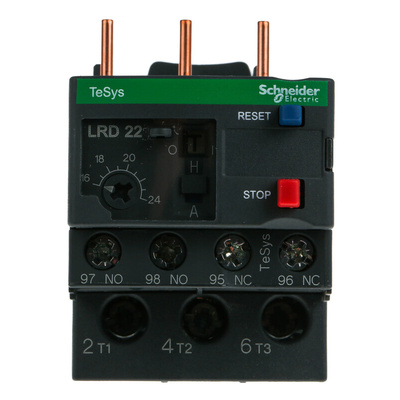

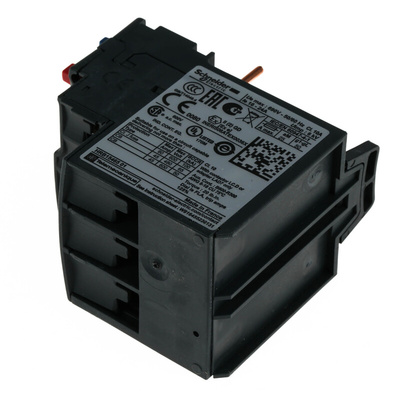

LRD22, Schneider Electric LRD Thermal Overload Relay 1NO + 1NC, 16 → 24 A F.L.C, 24 A Contact Rating, 3P, TeSys, Реле

Schneider Electric Differential Thermal Overload Relays - TeSys LRD Range

Schneider Electric TeSys range of three-pole thermal overload relays have been designed and created for motor protection, phase failure, long starting times and prolonged stalling of the motor.

This range of thermal overload relays features an adjustable relay setting dial, test and stop buttons, trip indicator, sealable cover and much more. The LRD's are 3-pole thermal overloads relays that can be used to protect motors that live within an explosive environment or atmosphere, they are ATEX-certified in all connector versions.

Features & Benefits

• Must be installed outside ATEX zones
• Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
• AC and DC network types
• These devices will commonly be called after their short name - LRD
• Feature a rated insulating voltage of 600 V power circuit conforming to CSA, 600 V power circuit conforming to UL and 690 V power circuit conforming to IEC 60947-4-1
• Network frequency of 0...400 Hz
• The option to mount directly beneath a three-pole contactor, independent mounting on DIN rail with specific accessories and plate with certain accessories
• Rated operational voltage is 690 V AC 0...400 Hz
• The control type is a red push-button stop and blue push-button for reset mode
• Temperature compensation is -20...60 °C
• These products have an IP protection rating of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• Standards - ATEX D 94/9/CE, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
• certifications - ATEX INERIS, BV, CCC, CSA, DNV, GL, GOST, LROS (Lloyds register of shipping), RINA, UL

Schneider Electric Thermal Overload Relay, 16 to 24A Thermal Protection Range, Direct Contactor Mounting - TeSys Series - LRD22

Boost your motor's lifespan with this overload relay from Schneider Electric. It protects your kit by stepping in to break a connected circuit if it detects a surge or phase failure. Thanks to the convenient clip-on design and screw-clamp terminals, it connects directly to the bottom of your TeSys contactor using a standard screwdriver. It can also be rail or plate mounted for versatility. An easy-to-use dial enables you to make adjustments between 16 and 24A so you can set the right thermal protection level for your application. Stop and reset push buttons put the controls at your fingertips.

Features & Benefits

• Versatile option that works with AC and DC circuits
• Tested to ensure it's mechanically resistant to vibrations and shock, for dependability in tough conditions
• Fire-retardant materials mean flames are extinguished in 30 seconds or less

Applications

• Plant machinery
• Building management
• Water treatment facilities
• Mining
• Energy industry

What TeSys contactors does this thermal overload relay work with?

This thermal overload relay is designed to fit three-pole LC1D25, LC1D32 and LC1D38 contactors to help protect against motor overloads and faults.
