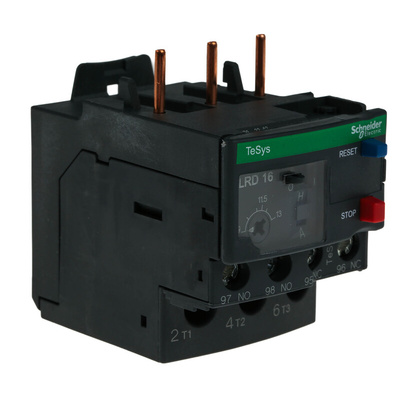

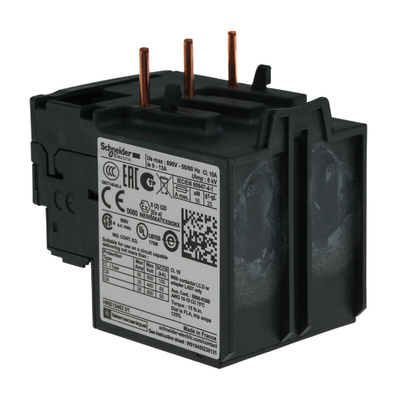

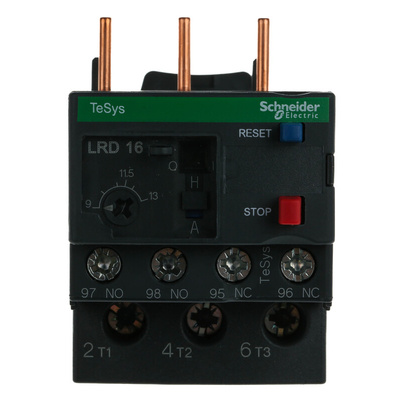

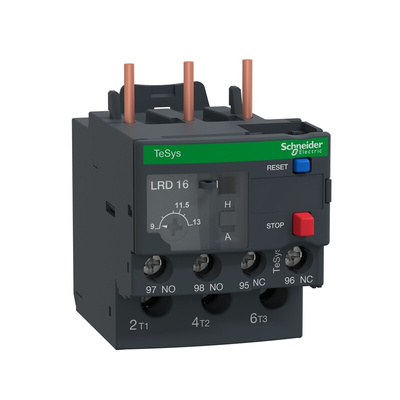

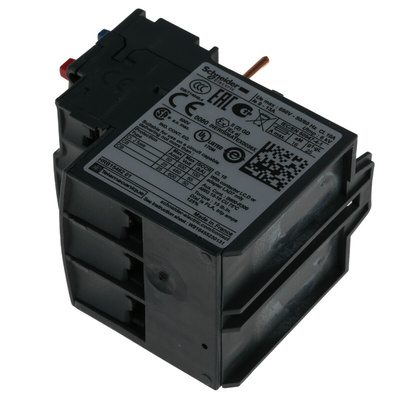

LRD16, Schneider Electric LRD Thermal Overload Relay 1NO + 1NC, 9 → 13 A F.L.C, 13 A Contact Rating, 6 kV, 3P, TeSys, Реле

Schneider Electric Differential Thermal Overload Relays - TeSys LRD Range

Schneider Electric TeSys range of three-pole thermal overload relays have been designed and created for motor protection, phase failure, long starting times and prolonged stalling of the motor.

This range of thermal overload relays features an adjustable relay setting dial, test and stop buttons, trip indicator, sealable cover and much more. The LRD's are 3-pole thermal overloads relays that can be used to protect motors that live within an explosive environment or atmosphere, they are ATEX-certified in all connector versions.

Features & Benefits

• Must be installed outside ATEX zones
• Easy maintenance checks, check the tightening of cables through conducting thermographic testing and checking the mechanical operation of the product through manually operating the test, reset and stop buttons
• AC and DC network types
• These devices will commonly be called after their short name - LRD
• Feature a rated insulating voltage of 600 V power circuit conforming to CSA, 600 V power circuit conforming to UL and 690 V power circuit conforming to IEC 60947-4-1
• Network frequency of 0...400 Hz
• The option to mount directly beneath a three-pole contactor, independent mounting on DIN rail with specific accessories and plate with certain accessories
• Rated operational voltage is 690 V AC 0...400 Hz
• The control type is a red push-button stop and blue push-button for reset mode
• Temperature compensation is -20...60 °C
• These products have an IP protection rating of IP20, this means that the relay is protected against solid objects up to 12 mm but has no protection against water
• Standards - ATEX D 94/9/CE, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14
• certifications - ATEX INERIS, BV, CCC, CSA, DNV, GL, GOST, LROS (Lloyds register of shipping), RINA, UL

Schneider Electric Thermal Overload Relay, 9 to 13A Thermal Protection Adjustment Range, 690V AC Operational Voltage - TeSys Series - LRD16

Do your operations depend on efficient motor control? Reach for this thermal overload relay from Schneider Electric to protect machinery against current surges and service disruptions. For versatility, you can select protection parameters between 9 and 13A. This range, coupled with 690V AC operational voltage, lets you use the device with demanding industrial equipment. Thanks to its integrated shock resistance, the unit stands its ground when things get shaky to help limit accidental disconnections. Plus, you can count on consistent performance in temperatures ranging from -20°C to +60°C.

Features & Benefits

• Self-extinguishing unit helps with improved safety in the event of a fire
• Stop and reset buttons make testing a breeze
• Lockable cover prevents tampering with current protection settings

Applications

• Factory automation
• Medical imaging equipment
• Railway applications
• Automotive manufacturing

Can I handle this thermal overload relay without getting an electric shock?

Yes, the IP20-rated housing is touch-proof to keep solid objects, such as your fingers, away from live wires.

Can I connect this thermal overload relay directly to my contactor?

Yes, just use the screw clamp terminals for direct connection to your 3-pole contactor.
