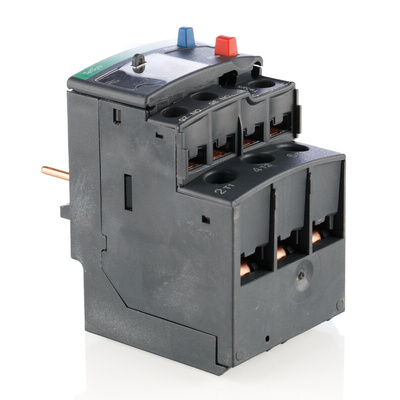

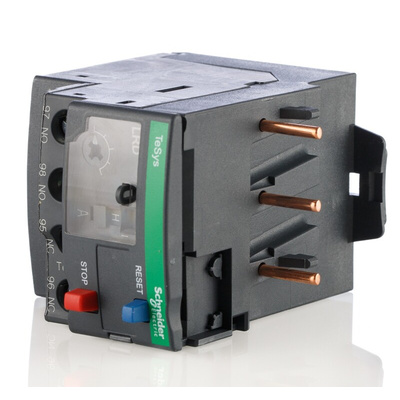

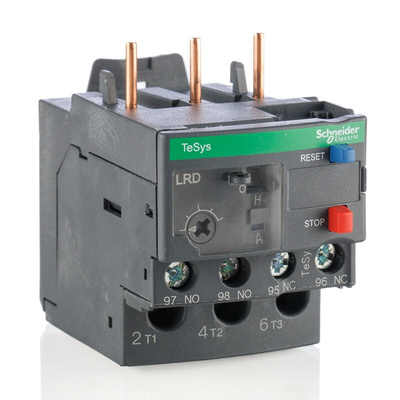

LRD08, Schneider Electric LRD Overload Relay 1NO + 1NC, 2.5 → 4 A F.L.C, 4 A Contact Rating, 3P, TeSys, Реле

Three-pole Thermal Overload Relays

Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor.

Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV

Schneider Electric Overload Relay, 0 to 400Hz Network Frequency, 6kV Rated Impulse Withstand Voltage - TeSys Series - LRD08

Safeguard your industrial motors in the heat of the action with this overload relay from Schneider Electric. It trips to stop the power supply to your equipment when there's excess current, preventing damage due to overheating. The unit holds fast against impact thanks to its durable plastic housing, making it the right choice for harsh industrial environments. With an operating temperature range between -20°C and +60°C, it's safe to use in challenging conditions. What's more, simple blue and red push buttons make it easy to reset or stop the device in an emergency.

Features & Benefits

• Rated impulse withstand voltage of 6kV means it handles sudden power surges without suffering damage
• Screw termination method is simple and doesn't need complex tools, saving time and hassle
• Narrow width of 45mm makes it easy to install in setups with limited space

Applications

• HVAC systems
• Air compressors
• Assembly lines
• Industrial conveyors

How do I mount this overload relay?

According to the needs of your setup, you can snap the unit directly onto a DIN rail, fix it to a panel using a mounting plate or link it directly under your equipment's contactor.

UL E164353

CSA 43364
