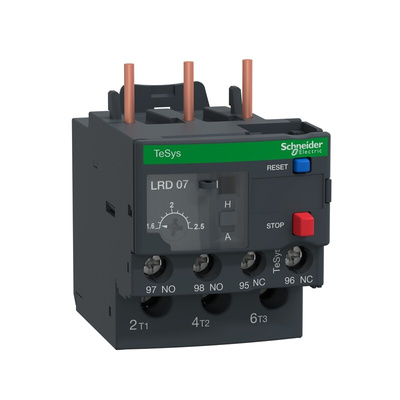

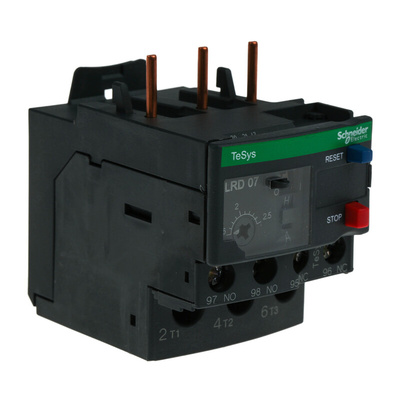

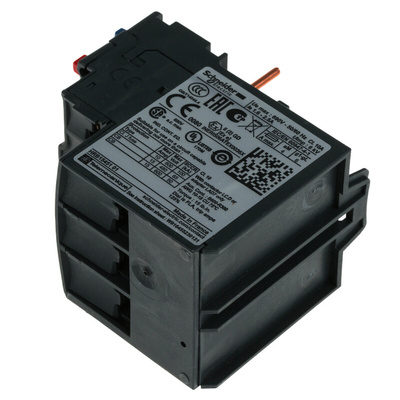

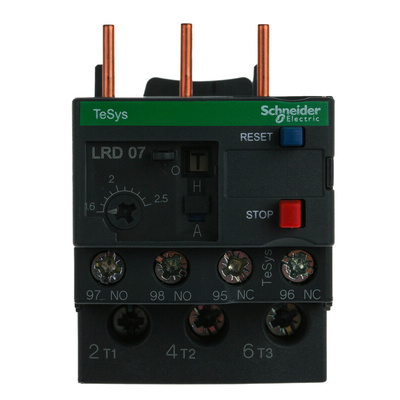

LRD07, Schneider Electric LRD Overload Relay 1NO + 1NC, 1.6 → 2.5 A F.L.C, 2.5 A Contact Rating, 3P, TeSys, Реле

Three-pole Thermal Overload Relays

Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor.

Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV

Schneider Electric Overload Relay, 1.6 to 2.5A Thermal Protection Adjustment Range, 690V AC Operational Voltage - TeSys Series - LRD07

Need a way to safeguard your low-current motors against phase failures and load issues? This overload relay from Schneider Electric has you covered. To help protect your application and limit service interruptions, it cuts the power supply if an electrical overload occurs. For flexibility, you can select settings between 1.6 and 2.5A. The unit's IP20-rated housing is touch-proof, so you can handle it safely without the risk of being shocked. It's made from rugged plastic so you can count on reliable performance in challenging conditions with temperatures between -20°C and +60°C.

Features & Benefits

• Slimline dimensions of 70 (D) x 45 (W) x 66mm (H) are a sure fit in small spaces
• Screw clamp terminals secure contacts to help prevent accidental disconnections
• Self-extinguishing to boost safety in the event of a fire

Applications

• Automated assembly and packaging lines
• Medical imaging installations
• Access controls

Is it easy to see at which current level this overload relay is set?

Yes, it has a transparent cover so you can see the selected level.

How many poles does this overload relay have?

The unit has three poles, making it suitable for three-phase motors. It also has two auxiliary contacts for fault signalling.

UL E164353

CSA 43364
