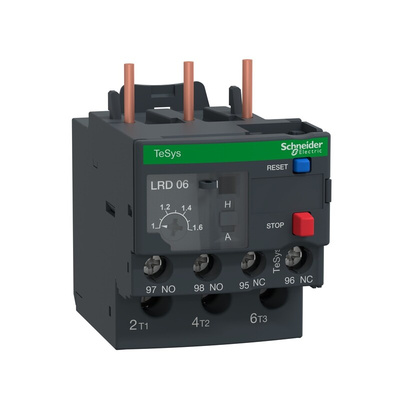

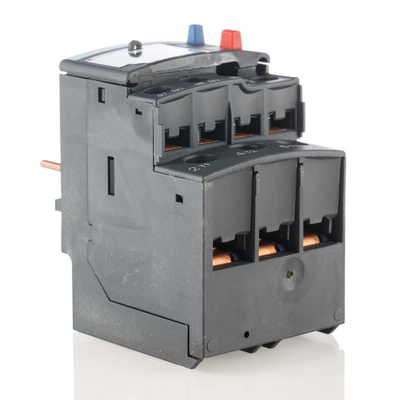

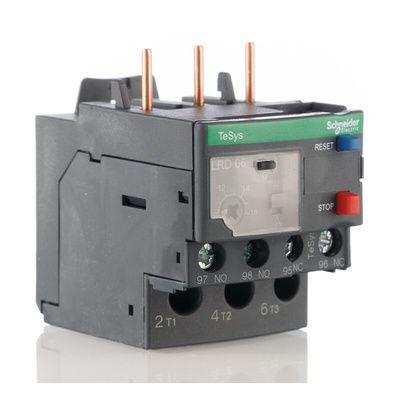

LRD06, Schneider Electric LRD Overload Relay 1NO + 1NC, 1 → 1.6 A F.L.C, 1.6 A Contact Rating, 3P, TeSys, Реле

Three-pole Thermal Overload Relays

Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor.

Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV

Schneider Electric Overload Relay, Push Button Control Type, 124g Weight - TeSys LRD Series - LRD06

To stop your three-phase motor from choking up, turn to this thermal overload relay from Schneider Electric. It helps to prevent a motor from drawing too much current, which can otherwise cause overheating and damage. The handy unit also picks up on unbalanced loads and phase failure, so it's quick to step in if there's a power supply problem. An adjustment dial makes it a breeze to manually set your thermal protection range between 1 and 1.6A. Once you've chosen your settings, you can lock the device by sealing its transparent cover, to eliminate the risk of tampering.

Features & Benefits

• Screw terminals for quick and easy wiring using only a screwdriver
• Sustainable design maximises its recyclability potential to reduce waste sent to landfill
• Includes a test selector for convenient tripping simulation
• Insulated for safety, so protects against electric shocks

Applications

• Process control
• Production lines
• Mining and minerals industry
• Power utilities

How easy is it to reset this overload relay?

Thanks to its colour-coded reset and stop buttons, you can be sure the device is simple to reset manually.

UL E164353

CSA 43364
