LE1D09P7, Schneider Electric DOL Starter, DOL, 4 kW, 690 V ac, 3 Phase, IP657, Пускатель

Schneider Electric TeSys DOL Starters - Non-Reversing

Schneider Electrics non-reversing DOL (direct on line) starters form part of the fitted TeSys range of components. They are predominantly used for motor driving workshop machinery, large fans, water pumps and similar types of equipment.

• High quality and reliable performance
• Aesthetically pleasing look and design
• An overload relay must be fitted to each starter before the starter will function typical stock no 394-9431

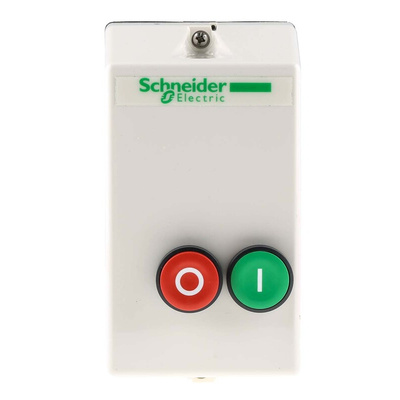

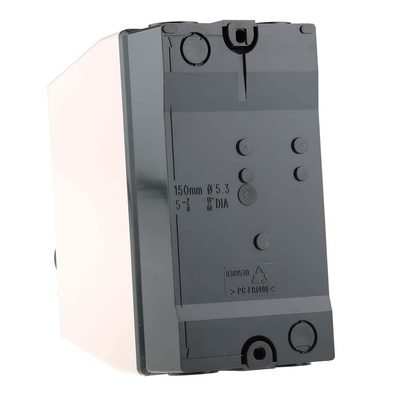

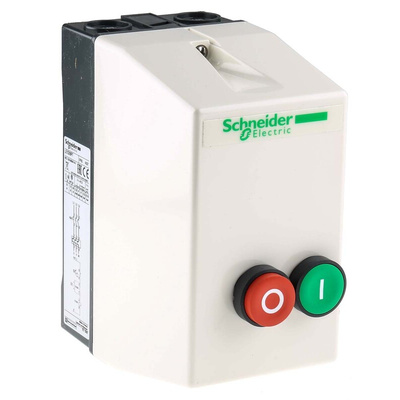

Schneider Electric TeSys LE Enclosed DOL Starter - LE1D09P7

• Often referred to by the device short name LE1D
• Control type - Push-button start green "I" and the red stop reset pushbutton features the letter "O"
• Features a 9A AC-3 rated operational current
• The control circuit voltage is 230 V AC 50/60 Hz
• 9 A conventional enclosed thermal current
• Comprised of a strong polycarbonate material
• Dimensions - W88mm x H166mm x D128.5mm and weighs 0.92 kg
• IP65 Degree of protection

LE1-D09 / D12 / D18 / D25 / D35 Specifications

LE1D09P7 Datasheet

Green Premium ecolable

Product Environmental Profile
