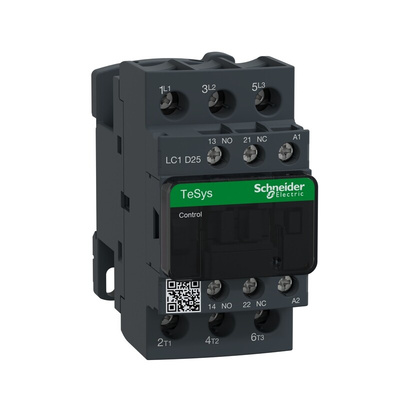

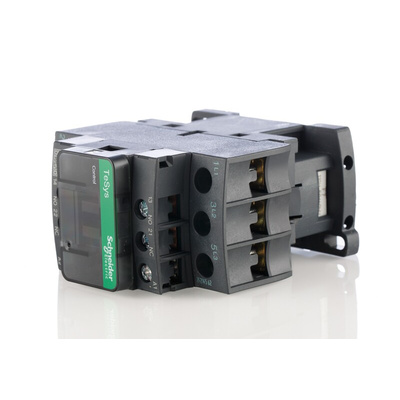

LC1D25B7, Schneider Electric LC1D Series Contactor, 24 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 11kW Power Rating, Screw Terminals - TeSys D Series - LC1D25B7

Want to delegate electrical switching tasks? Put this contactor from Schneider Electric in charge. Designed for AC-1, AC-3 and AC-4 use, it handles resistive loads and squirrel-cage motors. A maximum current rating of 40A means it works well with heavy loads, while a 4 to 22ms operating time means it has no trouble keeping up with speedy industrial processes. Built-in auxiliary contacts enable you to add a signalling function to your system. The screw terminals have multi-standard heads to give you a reliable wire connection using basic drivers. Compact dimensions of 85 (L) x 45 (W) x 92mm (D) make this unit a cinch to slot into existing motor controls.

Features & Benefits

• Protective cover and TH treatment means it's built for harsh conditions
• Mounts on rails and plates for installation flexibility
• Operates between -40°C and +60°C, meaning challenging temperatures are no problem
• Free from toxic heavy metals, mercury and PVC to boost sustainability

Applications

• Industrial automation
• Building control
• Water treatment plants
• Materials handling

How fire-safe is this contactor?

This contactor has been tested in temperatures up to +850°C to ensure it's fire resistant. It's designed so that vertical burning stops within 30 seconds, to maximise flame retardancy, so you can be sure it's safe.
