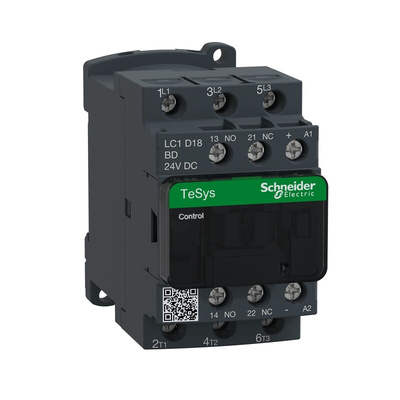

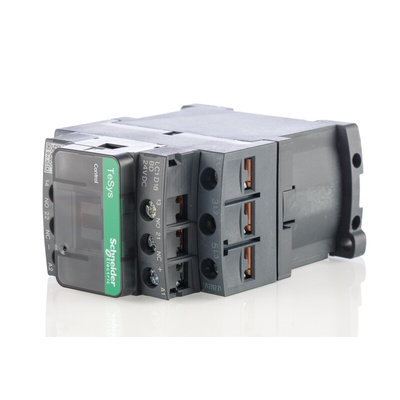

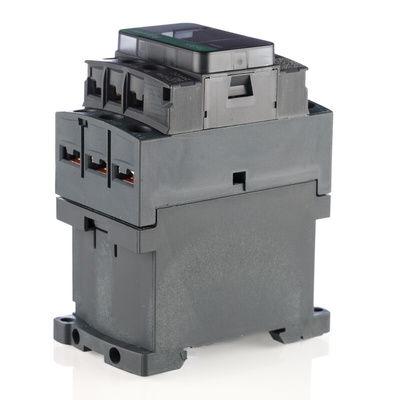

LC1D18BD, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 18 A, 7.5 kW, 3NO, 690 V ac, Контактор

3949728
Номер производителя: LC1D18BDПроизводитель: Schneider Electric
Цена за шт.
40716.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric Contactor, For DC Circuits, Screw Terminals - TeSys Deca Series - LC1D18BD

Trust this contactor from Schneider Electric to keep machinery ticking over. It does the job by switching an attached motor on and off as needed. Thanks to durability of over 1 million electrical cycles, it's reliable and long-lasting, so you can count on it to stand the test of time in harsh industrial environments. To beat the risk of power spikes damaging equipment, the unit withstands voltages surges of up to 6kV. Its low power dissipation between 0.8 and 2.5W per pole makes it energy-efficient, as minimal power is lost during its switching process. As this contactor is end-of-life optimised, it leaves only a light carbon footprint.

Features & Benefits

• Resists vibration and shock, so is compatible with extreme locations
• Flame-retardant, meaning it won't catch alight in the event of a fire
• Built-in auxiliary contacts, for superior switching capabilities
• Touch-proof IP20-rated front panel is protected against objects larger than 12mm
• Screw clamp terminals securely hold wires, reducing the need for regular re-tightening

Applications

• Automated assembly lines
• Robotics systems
• Printing industry
• Food manufacturing

How quickly does this contactor react to a control signal?

This contactor has an opening time between 16 and 24ms, which means it reacts almost instantly to a control signal.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Техническая спецификация
pdfGeneral
pdfDatasheet LC1D18BD
pdfGreen Premium - Product Environmental Profile
pdfInstruction Sheet - LC1D Series
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Глубина:
93мм
Диапазон:
TeSys D
Длина:
77мм
Катушка напряжение:
24 В пост. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Мощность номинальная:
7.5 кВт
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
18 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-5°C
Серия:
LC1D
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
