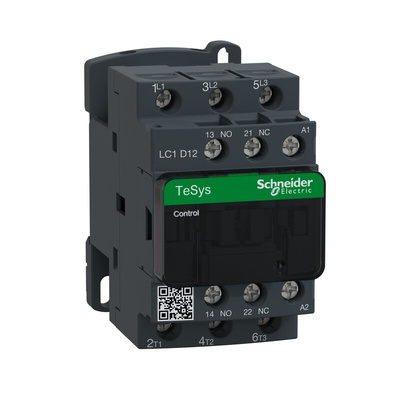

LC1D12P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 5.5kW Power Rating, 86mm Depth - TeSys D Series - LC1D12P7

Power up your circuitry with this contactor from Schneider Electric's TeSys D range. As it has two built-in auxiliary contacts, it's an all-rounder that gives you extra switching capacity for complex systems. Installation in tight spaces is a breeze thanks to its compact size of 77 (H) x 45 (W) x 86mm (D). A contact voltage rating of 690V AC means it's just the thing for high-power switching applications.

Features & Benefits

• IP20 rating means it's finger-safe and protected against objects larger than 12mm
• Wide operating temperature range of -40°C to +60°C for use in harsh industrial environments
• Mechanical durability of 15 million cycles for long-lasting performance
• Rated impulse withstand voltage of 6kV for protection against powerful surges
• Supplied with a protective cover for extra safety from contaminants and moisture

Applications

• Industrial lighting
• Electric motors
• HVAC systems

How do I wire this contactor?

This contactor has screw terminals, which make it easy to wire with a simple screwdriver. This type of connection provides a high degree of protection against vibration, helping to reduce the risk of accidental disconnection.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

UL E164862

CSA 43364
