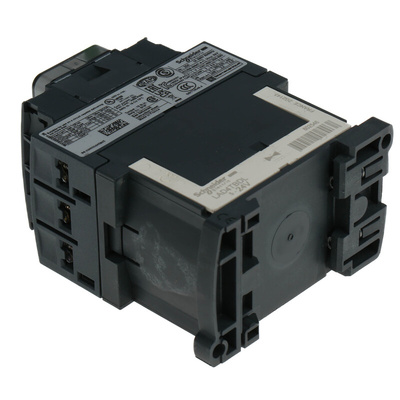

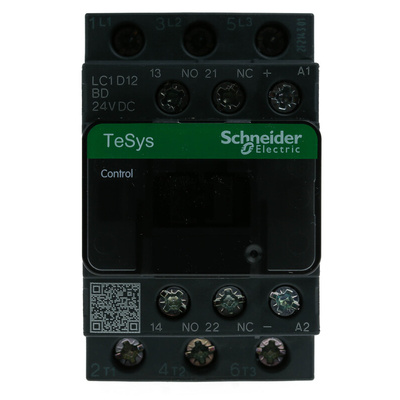

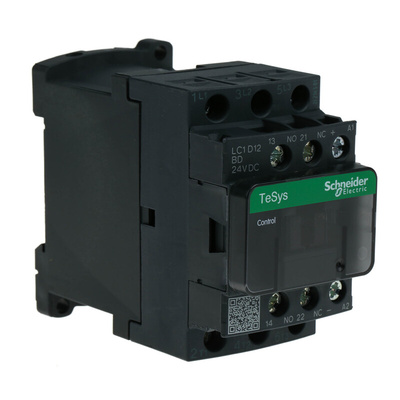

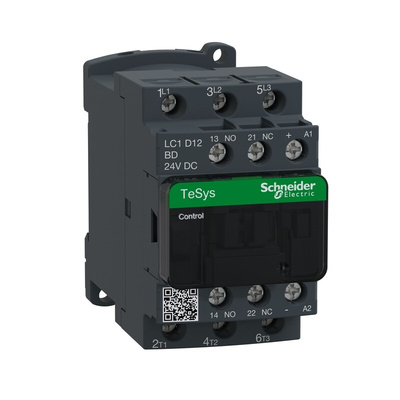

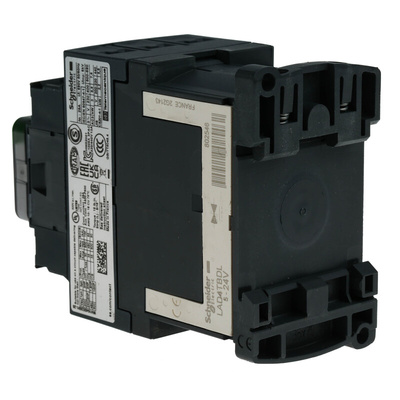

LC1D12BD, Schneider Electric LC1D Series Contactor, 24 V dc Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac, Контактор

Schneider Electric Contactor, 690V AC Contact Voltage Rating, 1.56W Pole Power Loss - LC1D Series - LC1D12BD

Securely activate demanding industrial appliances with this contactor from Schneider Electric. By starting motors with power ratings of up to 5.5kW, it switches large electrical loads to safely activate heavy machinery. As it uses a low 24V DC coil, you can trust it to limit your exposure to dangerous voltages. The unit's three poles mean it can control three circuits at once for wide system coverage, while built-in auxiliary contacts let the contactor signal your control device when it switches for easy monitoring.

Features & Benefits

• Contact reaction time between 16 and 72.45ms for responsive performance
• Power loss of 4.68W for energy-efficient appliance control
• Front-mounted protective cover provides effective impact resistance
• Mechanical service life of 30 million cycles gives you a long service life
• Broad operating temperature range of -40°C to +60°C for use in tough industrial conditions

Applications

• Agricultural equipment
• Lighting systems
• Manufacturing industry

What's the operating rate of this contactor?

This contactor achieves up to 3,600 operations an hour, giving you reliable machine control in fast-paced switching applications.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.
