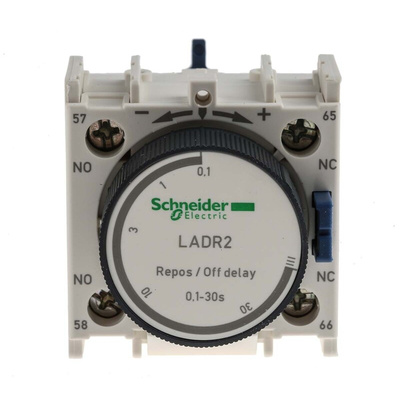

LADR2, Schneider Electric TeSys Pneumatic Timer, Таймер

Schneider Electric Pneumatic Timer, 1 to 30s Time Delay Range, 17V Minimum Switching Voltage - TeSys D Series - LADR2

Use this pneumatic timer from Schneider Electric to precisely manage the operation of your control devices. It's designed for use with TeSys-series contactors and works by converting air input signals to an OFF delay timing function. This helps to increase workplace safety in settings where electrical power is potentially dangerous. Choose the setpoint to suit your needs using the unit's time delay range of 1 to 30 seconds. A voltage rating of 690V AC makes this timer a practical choice for medium-duty industrial applications.

Features & Benefits

• Screw termination method is simple and doesn't need complex tools
• Integrated 10A GG fuse for short-circuit and overcurrent protection
• Broad operating temperature range of -5°C to +60°C for use in demanding conditions
• IP20 rating indicates that it's protected from objects larger than 12mm in size

Applications

• HVAC equipment
• Robotics and automation systems
• Lighting units

How do I operate this pneumatic timer?

This timer has an adjusting knob that makes it easy to set the OFF delay time. Simply turn it in a clockwise or anticlockwise direction to adjust its setpoint.
