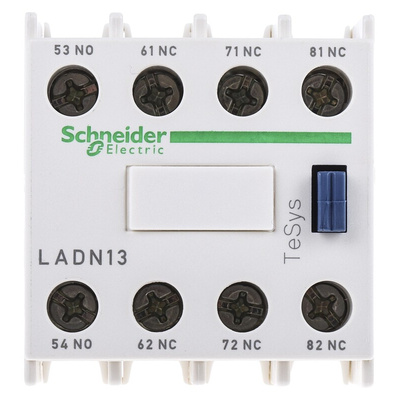

LADN13, Schneider Electric Auxiliary Contact Block, 4 Contact, 1NO + 3NC, Front Mount, TeSys, Контактный блок

Schneider Electric Auxiliary Contact Block, 1NO and 3NC Pole Contact Configuration, 690V AC Voltage Rating - LADN Series - LADN13

Do you need a secondary switching device to protect your main contact? Use this auxiliary contact block from Schneider Electric. With its 1NO and 3NC configuration, this versatile component can deliver two actions at once and support four units. The clip-on front-mounting styles supports straightforward plug-and-play use for simple system installation. The unit supports high-power connections thanks to its 690V AC voltage rating, and it has a mechanical durability of 30 million cycles, ensuring a long service life.

Features & Benefits

• Screw terminals keep your wiring firmly in place
• Compact dimensions of 48 (H) x 44 (W) x 42mm (D) take up minimal space in your setup
• Light 50g weight to put minimal strain on your equipment
• Low switching current consumption of 5mA means it's energy-efficient
• >
10MΩ insulation resistance reduces the risk of electric shocks

Applications

• Lighting installations
• Factory controls
• Electrical motors

What operating temperature range does this auxiliary contact block work in?

For safe use in harsh settings, the device has a wide operating temperature range between -5°C and +60°C.
