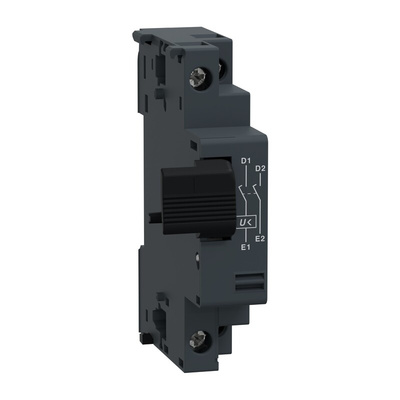

GVAX385, Schneider Electric GVAX Series Under Voltage Release for Use with GV2ME GVAX Series, 89mm Length

Under-Voltage Trips

Disconnects starter unit when there is a reduced applied voltage or supply failure
Prevents automatic restarting after mains supply failure

Schneider Electric Undervoltage Release, 690V AC Rated Insulation Voltage, Up To 1.4Nm Tightening Torque - TeSys Series - GVAX385

Steer your appliances away from danger with this undervoltage release from Schneider Electric. It keeps the contacts of your GV2ME-series circuit breaker (395-0251) open when the supply voltage drops below a set point, preventing an automatic reset that may damage your equipment. The unit responds to detected faults in 10 to 15ms, so you can rest assured of precise control in sensitive settings. It's designed to be mounted on the right side of your breaker and its modular design makes this process a walk in the park.

Features & Benefits

• Light weight of 105g puts minimal strain on your mounting surface
• Lifespan of up to 30,000 mechanical operating cycles for long-lasting service
• Low tightening torque of less than 1.4Nm for quick and easy wire connection
• Free from heavy metals and mercury, so it's an environmentally sustainable option

Applications

• Switchgear systems
• Residential buildings
• Construction sites
• Hospitality venues

How big is this undervoltage release?

This device has compact dimensions of 89 (H) x 18 (W) x 66mm (D), meaning it slots neatly into busy arrangements.

GVAX385

Datasheet

Product Change Notice (PCN)

Product Environmental Profile

Instruction Sheet - GV2 ME Series
