GV2ME32, Schneider Electric 24 → 32 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

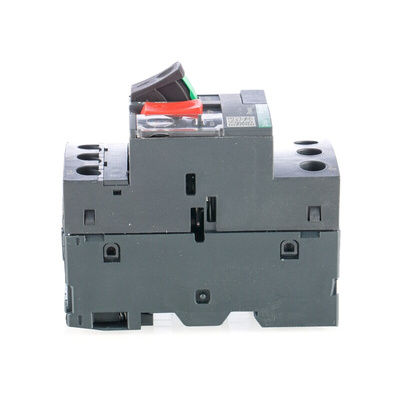

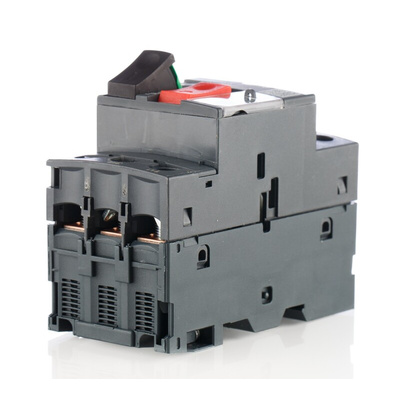

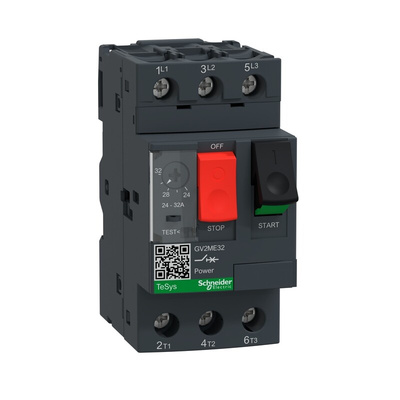

Schneider Electric Motor Protection Circuit Breaker, 3kA Breaking Capacity, 24 to 32A Current Rating - TeSys Series - GV2ME32

Need a safeguard against electrical issues? Choose this motor protection circuit breaker from Schneider Electric to protect your industrial machinery against voltage spikes, short circuits and relay shutdowns. It's an essential bit of kit that prevents downstream damage. A thermal-magnetic tripping mechanism disconnects the power supply instantly when faults occur. Front-facing stop/start push buttons are clearly identified and easy to use. With 100,000 cycles of mechanical and electrical durability, this unit delivers reliable performance time after time.

Features & Benefits

• Compact dimensions of 89 (H) x 45 (W) x 78.5mm (D) make it a sure fit in confined spaces
• Shock resistance helps prevent accidental disconnection
• Screw clamp terminals achieve secure connections
• IP20-rated housing is touch-proof and shields against objects larger than 12.5mm

Applications

• Crushers
• Industrial fans
• Compressors
• Packaging lines

How many poles does this motor protection circuit breaker have?

It's a 3-pole device, which means it can handle up to three circuits at once to simplify your industrial setup.

At what temperatures can I use this breaker?

The unit performs without a hitch in temperatures between -20°C and +60°C, so it's a durable option for heavy-duty environments.

CSA 081630
