GV2ME16, Schneider Electric 9 → 14 A TeSys Deca Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

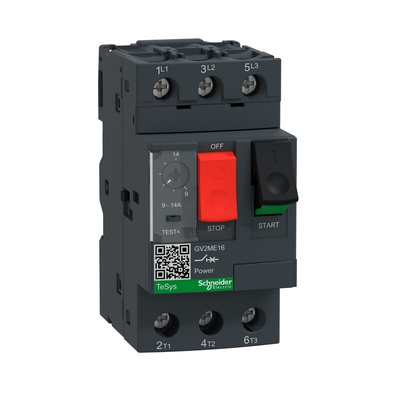

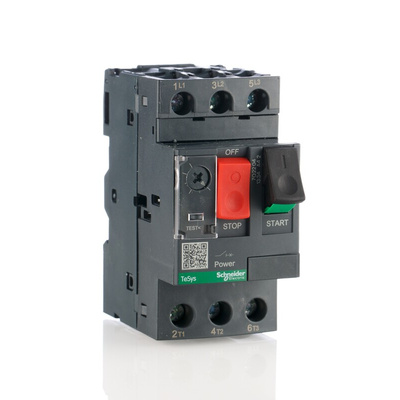

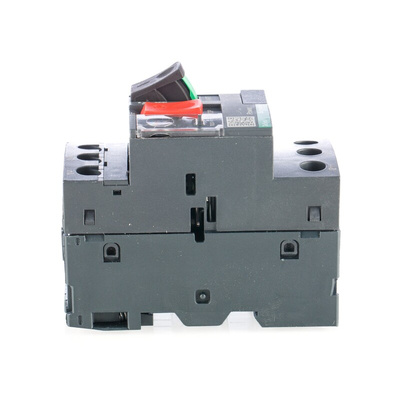

Schneider Electric Motor Protection Circuit Breaker, 14A Rated Current, 3 Poles - TeSys Deca Series - GV2ME16

Keen to stop power faults in their tracks? Put this motor protection circuit breaker from Schneider Electric on guard. Its thermal-magnetic tripping mechanism breaks a connected circuit when it receives a load exceeding 13 times its 14A current rating. This stops hazards from reaching downstream equipment and minimises the risk of damage. The unit mounts to a DIN rail, so it's quick and easy to install. With compact dimensions of 54 (W) x 89 (H) x 78.5mm (D), it doesn't take up much space.

Features & Benefits

• Simple push button and selector switch controls for easy adjustment
• Low power loss of just 2.5W per pole provides energy-efficient fault protection
• Labelled terminals for clear identification during installation and maintenance
• Lifespan of 100,000 electrical cycles ensures it's long-lasting and low-maintenance
• Screw terminals achieve a secure connection

Applications

• Automotive industry
• HVAC systems
• Processing plants

Can I secure this breaker's selector switch?

Yes, this unit's selector switch comes with a clear plastic cover to prevent accidental changes to its settings.

What temperatures does this device work in?

The breaker operates in temperatures between -20°C and +60°C, so it's ruggedly built and suitable for demanding settings.

CSA 081630

RS OUR OFFER - SCHNEIDER ELECTRIC TeSys GV2-ME

Green Premium ecolable

GV2ME16 Datasheet

Product Change Notice (PCN)

Green Premium - Product Environmental Profile

Product Environmental Profile

Guide - GV2ME16

Instruction Sheet - GV2ME16
