GV2ME14, Schneider Electric 6 → 10 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

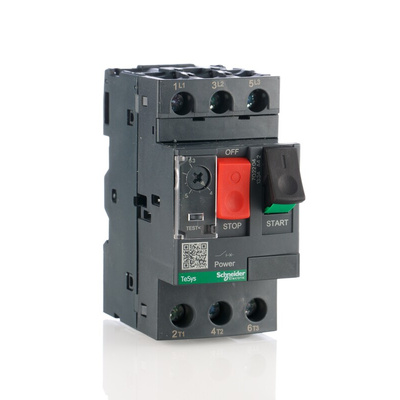

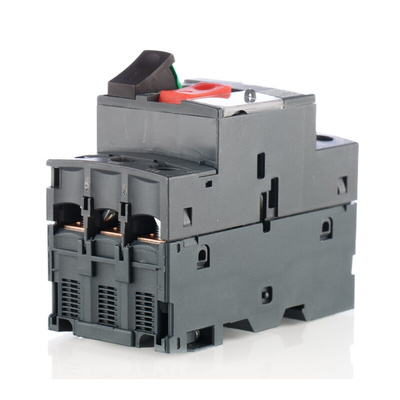

Schneider Electric Motor Protection Circuit Breaker, Manual Operation, 3 Poles - TeSys Deca Series - GV2ME14

For motor protection and control in one handy unit, turn to this motor protection circuit breaker from Schneider Electric's TeSys range. It safeguards against overloads and short circuits and includes an on/off motor control, so you've got the functions you need in a single device. By acting as a safety barrier between components, the breaker helps to prevent equipment damage and downtime. Push button operation makes it a cinch to use, so you can react quickly when time is of the essence. For reliability in harsh industrial environments, it resists shock and vibration.

Features & Benefits

• Coloured operating buttons are quick and easy to identify
• Compact dimensions of 89 (H) 45 (W) x 78.5mm (D) make it a good choice for tight setups
• Suitable for panel or DIN rail mounting to best suit your needs
• Mechanical durability of up to 1 million cycles for dependability throughout its extended service life

Applications

• Metal working
• Mining and minerals processing
• Industrial automation
• Food and beverage industries

What type of terminals does this circuit breaker have?

The component has screw terminals for uncomplicated wiring using just a screwdriver.

CSA 081630

GV2ME14 Datasheet

RS OUR OFFER - SCHNEIDER ELECTRIC TeSys GV2-ME

Product Change Notice (PCN)

Green Premium - Product Environmental Profile

Product Environmental Profile

Instruction Sheet - GV2 ME

User Guide - Deca Motor Circuit Breakers Frame 2
