GV2ME07, Schneider Electric 1.6 → 2.5 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

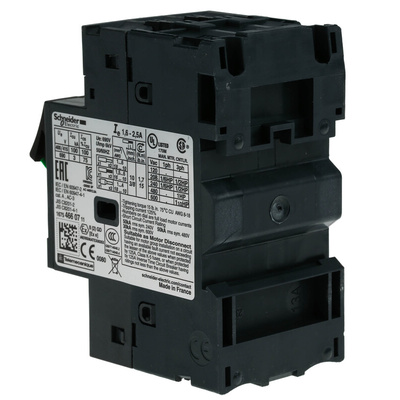

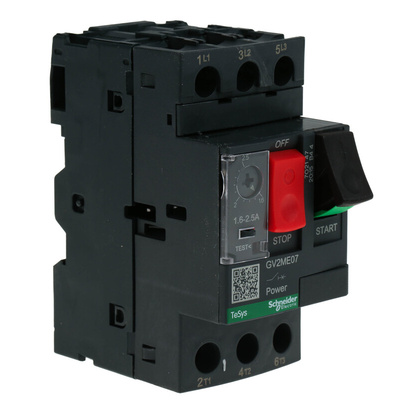

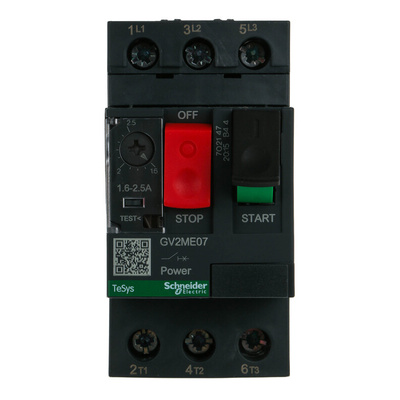

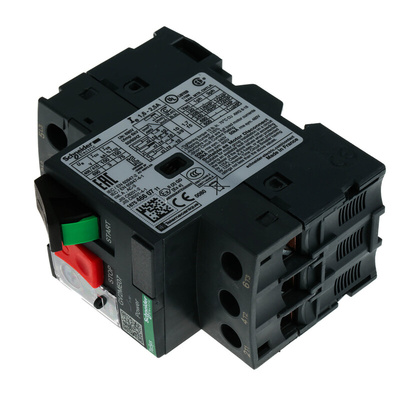

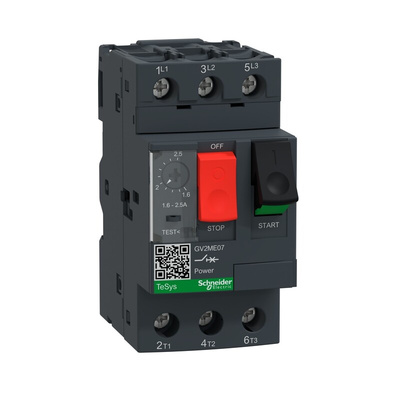

Schneider Electric Motor Protection Circuit Breaker, Screw Terminals, 3 Poles - TeSys Deca Series - GV2ME07

Get the upper hand over downtime with this TeSys motor protection circuit breaker from Schneider Electric. It puts an end to equipment damage caused by short circuits and overloads, so helps to optimise your plant's productivity. The versatile unit includes an on/off motor switch, giving you the benefit of various functions in one package. Push buttons on the breaker allow for quick and easy manual operation and the buttons are different colours for snappy identification. Depending on your setup, you can choose to mount this device on a panel or clip it onto a DIN rail.

Features & Benefits

• Multi-standard screws simplify installation
• Short-circuit indication lets you know immediately when a fault has occurred
• Mechanical and electrical durability of up to 1 million cycles for reliability throughout its extended lifespan
• Screw terminals hold wires securely, even with vibration, so there's minimal need for maintenance

Applications

• Wastewater management
• Automotive manufacturing
• Metal working
• Mining and minerals processing

What's the breaking capacity of this motor protection circuit breaker?

The MPCB's high breaking capacity of 3kA means you can count on it to put a stop to powerful current faults.

UL E164864

CSA 081630
