GV2ME06, Schneider Electric 1 → 1.6 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

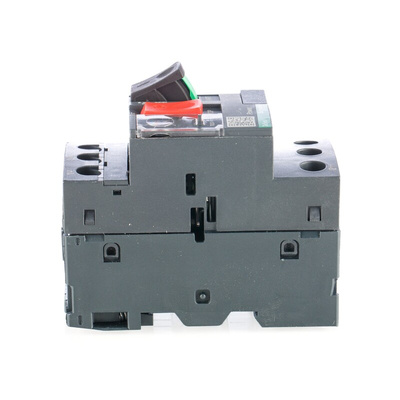

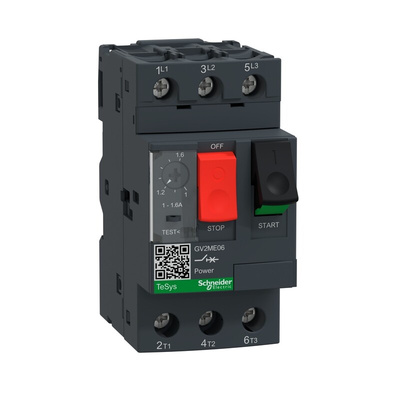

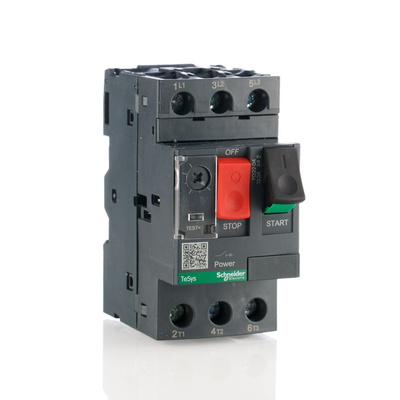

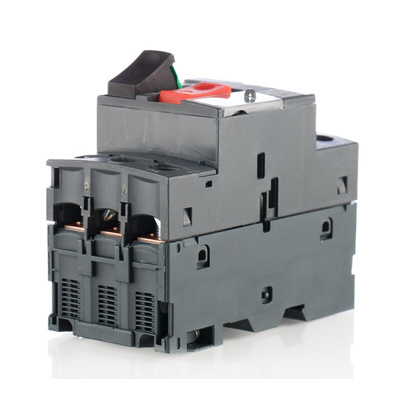

Schneider Electric Motor Protection Circuit Breaker, Thermal-Magnetic Tripping, 2.5W Power Dissipation Per Pole - TeSys Series - GV2ME06

Don't let electrical hazards trip up the smooth operation of your industrial kit – safeguard it with this motor protection circuit breaker from Schneider Electric. By monitoring the connection and cutting the power supply to your equipment in the event of a short circuit or overload, the unit prevents damage and minimises downtime. Red and green indicators on the control buttons make it easy to identify when the unit has tripped, so that's one less thing to worry about. It snaps onto a DIN rail and can be assembled in any position, making installation a quick and hassle-free business.

Features & Benefits

• Rated impulse withstand voltage of 6kV to handle sudden power spikes without experiencing damage
• Light weight of 260g for easy handling during installation
• Power rating of 1.1kW for use with light-duty applications
• Mechanical durability of 100,000 operating cycles for long-lasting performance

Applications

• Medical equipment
• Chemical laboratories
• Amusement parks

Is this circuit breaker finger-safe?

Yes, its IP20 rating shows that its terminals are designed to withstand objects larger than 12mm in size, including tools, wires and your fingers.

CSA 081630
