GV2ME05, Schneider Electric 0.63 → 1 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breaker - GV2M Series

Protecting your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV2M series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents.

Features & Benefits

• Flexibility in locking the N/C position via the use of 3 padlocks is available
• Motor Protection Switch Push button style control type with easily distinguishable button, coloured in re.
• 100,000 cycles of electrical/mechanical durability
• Light-weight, robust and compact in its design, the GV2M series is perfect for tight spaces
• If used on its own, the MPCB has manual or local control. Combined with a contactor and you have access to an automatic & remote control
• Spring terminal & Screw clamping is available
Protection ratings & Safety features:
• Live parts are inaccessible to any direct contact from external users, improving the safety of operations around the MPCB
• Thermal-magnetic trip technology to help protect the unit built into the circuit-breaker
• EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1 standard ratings (full list in the datasheet)
• Certified ATEX, BV, CCC. CSA and more (full list in the datasheet)
• IP20 degree of protection, conforming to IEC 60529 - further protection against solid objects e.g. a person's fingers.
• IK04 degree of protection - impacts of up to 0.5 Joules to the device offer limited protection

Applications

• Electrical Motor Control and protection
• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Note

For use with the TeSys contactor, up to 15kW – for typical contactor see (stock no. 394-9813)

Approvals

UL Listed, CSA Certified

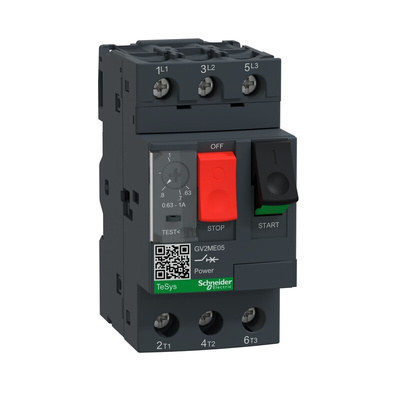

Schneider Electric Motor Protection Circuit Breaker, 3 Poles, Mechanical Durability of 100,000 Cycles - TeSys Deca Series - GV2ME05

Break free from faults in your circuit with this MPCB from Schneider Electric. It quickly cuts off the power supply when it senses current overloads, short circuits or phase failures, protecting your device from damage. A mechanical durability rating of 100,000 cycles means you can rest assured that this device is up to the challenge of long-term use. It's a breeze to mount by snapping onto a DIN rail or screwing to a panel, so you can choose the option that best suits your setup.

Features & Benefits

• IP20 rating indicates it's protected against objects up to 12mm
• Low power dissipation per pole of 2.5W for energy efficiency
• Thermal protection adjustment range of 0.63 to 1A meets safety standards in IEC 60947-4-1
• Can be locked in the N/C position with a padlock to prevent tampering

Applications

• Construction sites
• Server rooms
• Packaging facilities
• Lighting fixtures

How do I control this MPCB?

Controlling the MPCB is easy – use the built-in push button to stop and restart it.

Can I use this MPCB in vibrating environments?

Yes, you can safely use the breaker near moving machinery, thanks to its integrated resistance to mechanical shock and vibration.

CSA 081630
