GV2ME04, Schneider Electric 0.4 → 0.63 A TeSys Motor Protection Circuit Breaker, 690 V, Автоматический выключатель

Schneider Electric Motor Protection Circuit Breakers - GV2

Forming part of Schneider Electrics GV2 range of products, these reliable and robust motor protection circuit breakers have thermal-magnetic trip technology. It is the perfect solution for protecting user's motors from faults such as an overload of high voltages, short circuits and relay shutdowns. These particular motor protection circuit breakers offer short circuit and overload protection built within one device.

Any downtime of machinery is detrimental to a business and its operations, Schneider Electrics GV2 series has been created and designed to act as an intermediary between machinery and devices, enabling the protection of important equipment in the event of an unforeseen incident. These circuit breakers can also be used for disconnection.

How do you select the right Motor Protection Circuit Breaker?

MPCBs are more critical now than ever. Most infrastructure now relies on a motor behind the scenes to power critical uninterruptible systems such as heating, ventilation, cooling all of which we take for granted. These systems are vital in ensuring business productivity and therefore must be protected against overcurrent's, thermal overloads and much more.

To select the right MPCB, consider the systems you and your business rely upon. Checking the features and benefits of each MPCB will prove invaluable when deciding what critical infrastructure you wish to protect.

Approvals

UL, CSA

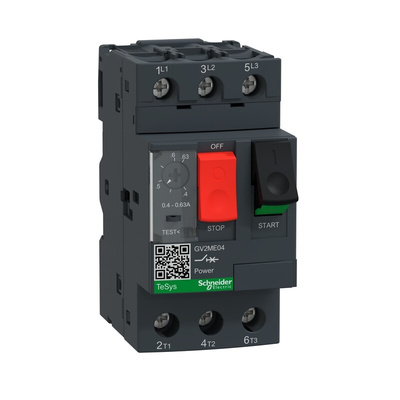

Schneider Electric Motor Circuit Breaker - GV2ME04.

• Significantly reduces downtime of machinery which allows operations to operate smoothly and safe.


• Forms part of the TeSys range of products, known as the TeSys GV2 (Green Premium).


• Short name GV2ME.


• Application – Motor.


• Thermal magnetic trip.


• 3 poles.


• AC network type.


• The network frequency is 50/60 Hz which conforms to IEC 60947-4-1.


• Option to mount by clips (35 mm symmetrical DIN Rail), Panel Screwed (with adaptor plate).


• Users can choose if they would like to mount the circuit breaker horizontally or vertically (any operating position).


• Pushbutton control type.


• 0.63 A Rated current.


• This motor protection circuit breaker features an ingress protection rating of IP20, this means that it is protected against solid objects that are over 12.5mm such as hands and large tools. This IP rating also means that the circuit breaker has no protection against liquid.


• Mechanically durable for up to 1000000 cycles.


• Electrical durability up to 1000000 cycles for AC-3 at 440 V.


• Dimensions - H89mm x W45mm x D78.5mm, New weight 0.26 kg.


• Motor power kW – 0.12 KW at 400/415 V AC 50/60 Hz, 0.18 KW at 400/415 V AC 50/60 Hz, 0.37 KW at 690 V AC 50/60 Hz.

GV2ME04 Standards.

• EN/IEC 60947-2, EN/IEC 60947-4-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, IP20, IK04.

GV2ME04 Fire resistance.

• 960°C to IEC 60695-2-1.

GV2ME04 Certification.

• IECEE CB Scheme, UL, CSA, CCC, EAC, ATEX, BV, LROS (Lloyds register of shipping), DNV-GL, RINA.

UL E164864

CSA 081630
