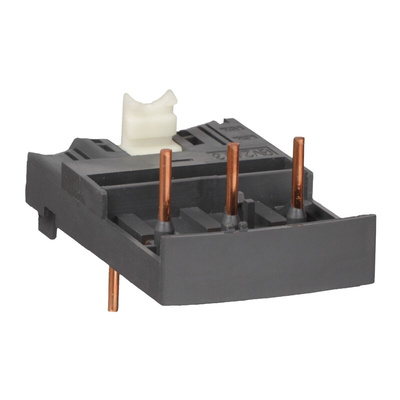

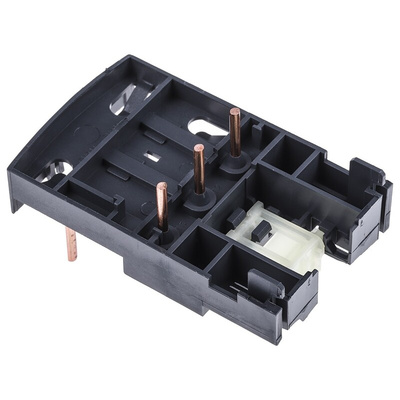

GV2AF3, Schneider Electric Linergy Connection Link

Interconnection GV2

Connects a motor circuit breaker to a contactor

Schneider Electric Connection Link, 32A Current Rating, 16g Weight - TeSys Linergy GV2 Series - GV2AF3

Need a trusty go-between to connect protective devices to your motor starting appliances? Put this connection link from Schneider Electric to the test. It's designed for use with contactors in the TeSys D (394-9807) and circuit breakers in the TeSys GV2 (395-0245) series. The component has contact pins that carry signals across the two devices, eliminating the need for excess wiring and giving you a neat circuit layout. Use it with a breaker to ensure safety in the event of an electrical fault, cutting power to prevent equipment damage and fire outbreaks.

Features & Benefits

• 32A current rating makes it the right fit for heavy-duty applications
• Low 16g weight helps to keep your setup light
• Installation is simple and doesn't need complex tools, saving you time and hassle
• Compatible with AC and DC networks for versatility

Applications

• Process and packaging equipment
• Lifts and escalators
• Automotive industry

How do I install this connection link?

First, unfasten the screw terminals at the top of the contactor, insert the link's bottom pins, and secure them. Then, do the same for the terminals at the base of the circuit breaker and slot in the device's top contacts.
