CAD32BD, Schneider Electric CAD Series Contactor, 24 V dc Coil, 10 A, 3NO + 2NC, 690 V dc, Реле

Schneider Electric | TeSys D Series | Control Relays

Featuring a new design, the TeSys D series of contactors are simple and fast to set up in all automation applications. Compliant with international standards these relays maintain a compact size of 45 to 55mm (40 to 65A). Assuring a permanent tightening quality even in the event of conductor creep, all versions are equipped with EverLink which is a new patented technology. Each relay is also as standard 10A with 5 poles, suitable for AC or DC control. A version is also available with low consumption and built in suppression.

What is EverLink technology?
A removable terminal block, contactors and circuit-breakers can be linked without and accessory, vertically. On the same rail wiring can be connected in less than a minute. Reducing heat loss at connection points and without creep this technology provides quality wiring, continuity of service, fast assembly and reduced dimensions.

Features and Benefits:

• Thermal contacts 10A with operation down to 17V 5mA
• AC and DC Control circuits available
• Low-consumption DC and silent
• Variety of auxiliary contacts, and timer modules
• 5 pole
• Resistance to vibration & temperature cycling
• Rated impulse withstands voltage 6 kV conforming to IEC 60947

Protection ratings & Safety features:

• BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection front face conforming to VDE 0106
• TH conforming to IEC 60068

Applications - Used to create motor starters for any type of application and integration in control systems. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems
• Industry, infrastructure, and building

Note

For typical auxiliary contact blocks see stock number 394-9970

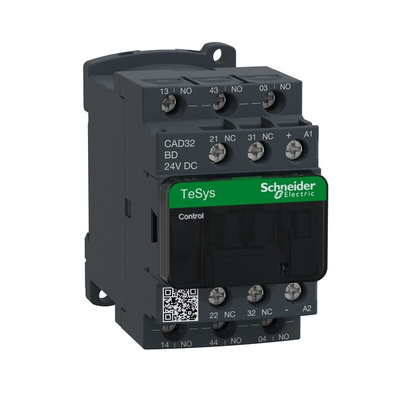

Schneider Electric CAD Series Contactor, 3NO + 2NC Configuration, Green Premium - CAD32BD

This Schneider Electric contactor is a crucial component in the automation, electronics, Electrical, and mechanical industries. With a contact current rating of 10A and a contact voltage rating of 690V DC, this contactor offers reliable performance. The TeSys CAD series ensures high quality standards, making it a valuable asset in various applications.

Features & Benefits

• DIN Rail Mount design for easy installation and maintenance
• Screw terminal for secure connections
• Green Premium contactors for energy efficient operations
• Schneider Electric better World Product with sustainable features
• Operating Temperature Range of 5 to +60 °C for versatile use

Applications

• Ideal for control circuits in automation systems
• Suitable for applications requiring high contact current and voltage ratings

Can it handle high contact current?

Yes, the contactor is designed to support a contact current rating of 10A.

Is it suitable for use in varied temperature conditions?

Yes, the contactor can operate within a temperature range of -5 to +60 °C.
