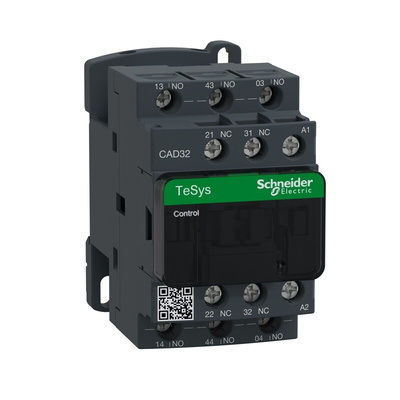

CAD32B7, Schneider Electric CAD Series Contactor, 10 A, 2NO + 2NC, 690 V ac, Реле

3950431
Номер производителя: CAD32B7Производитель: Schneider Electric
Цена за шт.
15834.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Schneider Electric | TeSys D Series | Control Relays

Featuring a new design, the TeSys D series of contactors are simple and fast to set up in all automation applications. Compliant with international standards these relays maintain a compact size of 45 to 55mm (40 to 65A). Assuring a permanent tightening quality even in the event of conductor creep, all versions are equipped with EverLink which is a new patented technology. Each relay is also as standard 10A with 5 poles, suitable for AC or DC control. A version is also available with low consumption and built in suppression.

What is EverLink technology?
A removable terminal block, contactors and circuit-breakers can be linked without and accessory, vertically. On the same rail wiring can be connected in less than a minute. Reducing heat loss at connection points and without creep this technology provides quality wiring, continuity of service, fast assembly and reduced dimensions.

Features and Benefits:

• Thermal contacts 10A with operation down to 17V 5mA
• AC and DC Control circuits available
• Low-consumption DC and silent
• Variety of auxiliary contacts, and timer modules
• 5 pole
• Resistance to vibration & temperature cycling
• Rated impulse withstands voltage 6 kV conforming to IEC 60947

Protection ratings & Safety features:

• BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection front face conforming to VDE 0106
• TH conforming to IEC 60068

Applications - Used to create motor starters for any type of application and integration in control systems. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems
• Industry, infrastructure, and building

Note

For typical auxiliary contact blocks see stock number 394-9970

Schneider Electric Contactor, AC Control Circuit Type, 5mA Minimum Switching Current - TeSys CAD Series - CAD32B7

Boost the efficiency of your switchboard applications using this contactor from Schneider Electric. Thanks to its small size of 77 (H) x 45 (W) x 84mm (D), you benefit from optimised packing space to keep your setup neat and compact. The control relay reliably switches demanding circuits while protecting against power surges. This reduces the chance of equipment blowouts and cuts down on maintenance needs. Its durable screw terminals keep wiring firmly in place and let you put the device to the test in challenging settings.

Features & Benefits

• Insulated to protect users against electric shocks
• Optional DIN rail or plate mounting to best suit your setup
• Maximum operating rate of 180 cycles per minute, so it's suitable for use with demanding systems
• Low minimum switching current of 5mA for energy-efficiency

Applications

• Mining and minerals processing
• Oil and gas industries
• Pharmaceutical manufacturing
• Industrial automation

How long can I expect this contactor to last?

As it has a mechanical durability of up to 30 million cycles, you can count on this product to deliver an extended lifespan.

Техническая спецификация
pdfCAD32B7 Datasheet
pdfGreen Premium Ecolabel
pdfProduct Change Notice (PCN)
pdfProduct Environmental Profile
pdfInstruction Sheet - LC1D Series
Верификация Better World:
Green Premium
Вид монтажа:
DIN Rail
Глубина:
84мм
Диапазон:
TeSys
Длина:
77мм
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
10 A
Нормальное состояние конфигурации:
2NO + 2NC
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-5°C
Серия:
CAD
Тип клеммы:
Винт
Товар Better World:
Да
Ширина:
45мм
