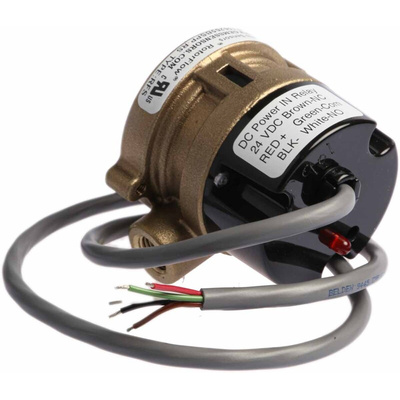

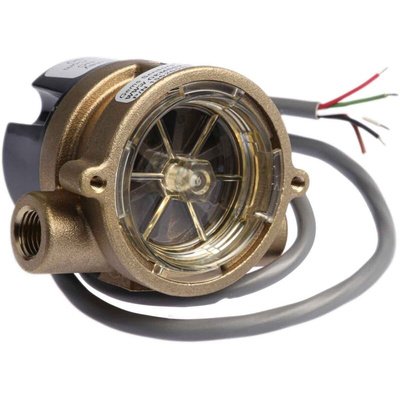

156265BSPP, Gems Sensors RFS Series RotorFlow Electronic Flow Sensor for Liquid, 2 L/min Min, 20 L/min Max

Gems Sensors Flow Indicator

The Gems Sensors RFS series rotor flow electronic sensor sense a liquid flow rate of 2L/min to 20L/min. It is built on an extra level of reliability and protection to your equipment. By the principle of operation, the rotor cannot be deceived into indicating a positive flow situation in case of no flow. Once set to a desired actuation point, the rotor flow will switch to a ’no-flow’ condition should the rotor stop for any reason. It has an input power of 24VDC.

Features and Benefits

Pipe diameter range is 1/4in
Combines visual confirmation of flow with dynamic, electronic switch operation
Easy, adjustable switch point calibration- a local LED signals when set point is reached
It is available in brass body material
Connection type is 1/4 BSP female
Maximum operating pressure is 14bar
Maximum operating temperature is 100°C

Applications

Semiconductor processing equipment
Lasers
Medical equipment
X-Ray and other high-power tubes
Robotic welding equipment

Certifications

CE certified
cRUus certified
