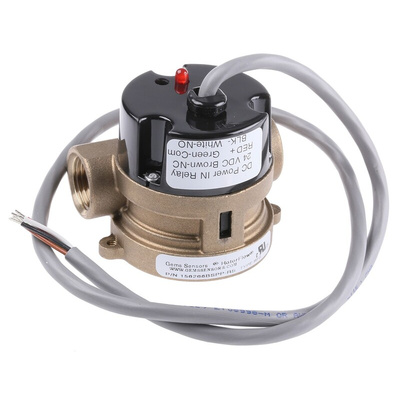

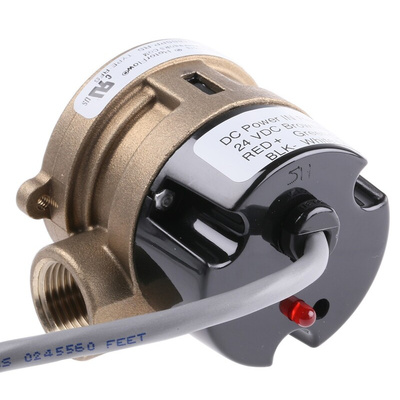

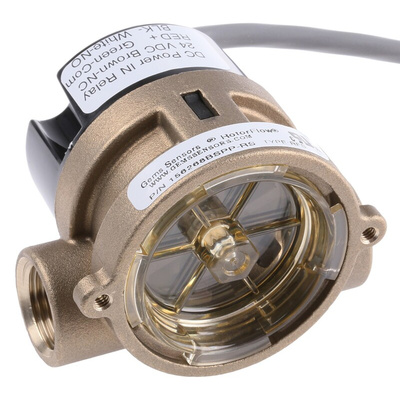

156268BSPP, Gems Sensors RFS Series RotorFlow Electronic Flow Sensor, 15 L/min → 75 L/min

3956934
Номер производителя: 156268BSPPПроизводитель: Gems Sensors
Цена за шт.
87135.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Gems Sensors Flow Indicator

The Gems Sensors RFS series rotor flow electronic sensor sense a liquid flow rate of 15L/min to 75L/min. It is built on an extra level of reliability and protection to your equipment. By the principle of operation, the rotor cannot be deceived into indicating a positive flow situation in case of no flow. Once set to a desired actuation point, the rotor flow will switch to a ’no-flow’ condition should the rotor stop for any reason. It has an input power of 24VDC.

Features and Benefits

Pipe diameter range is 1/2in
Combines visual confirmation of flow with dynamic, electronic switch operation
Easy, adjustable switch point calibration- a local LED signals when set point is reached
It is available in brass body material
Connection type is 1/4 BSP female
Maximum operating pressure is 13.8bar
Maximum operating temperature is 100°C

Applications

Semiconductor processing equipment
Lasers
Medical equipment
X-Ray and other high-power tubes
Robotic welding equipment

Certifications

CE certified
cRUus certified

Техническая спецификация
pdfDatasheet
pdfDatasheet
Диапазон диаметра трубы:
1/2 in
Максимальная температура среды:
+100°C
Максимальное давление:
13.8бар
Максимальный рейтинг расхода:
75 Л/мин
Материал:
Латунь
Минимальная скорость потока:
15 Л/мин
Минимальная температура среды:
-29 °C
Мониторинг информации:
Liquid
Напряжение питания:
24 В пост. тока
Рабочая температура - максимальная:
+100°C
Рабочая температура - минимальная:
-29°C
Серия:
RFS
Соединение - тип:
1/4 BSP Female
Тип девайса:
RotorFlow Electronic
