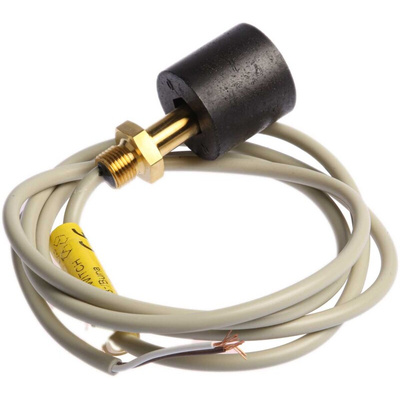

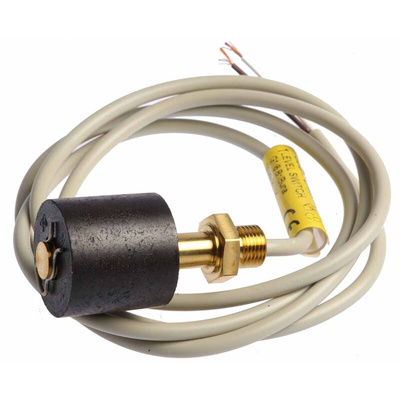

011-1700, Gems Sensors Horizontal, Vertical Brass/NBR Float Switch, Float, 1m Cable, Relay

Gems Sensors Metal Switch

The Gems Sensors metal switch is the latest innovation that offers broad chemical compatibility for general purpose applications. This device is also ideal for oils and water. With SPST output, it will either be normally closed or opened. Depending on the orientation of the float, the position can be reversed.

Warning:
The cable entry point must not be submerged under any circumstances
They must be fitted through the wall of a tank on the horizontal switches so that the cable is on the outside
On the vertical type, the mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Operating pressure is 10bar
Depth of immersion is 9mm
Min SG of liquids is 0.45
Mounting thread is G1/8

Certifications

IP64 rated

Gems Switches Technical Overview

Single level switches LS-77700, LS-1700, LS-1750E, LS-1800

LS-1700 Specifications

Switch Rating Information (Page 4)
