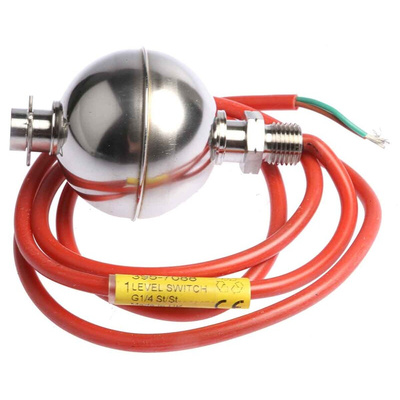

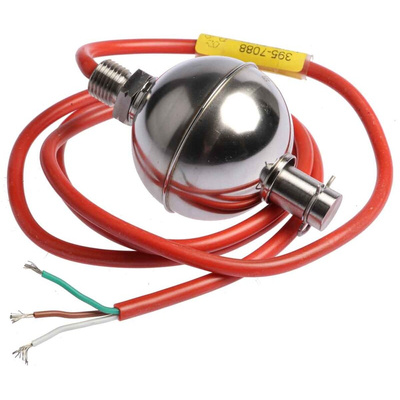

010-3089, Gems Sensors Horizontal, Vertical Stainless Steel Float Switch, Float, 1m Cable, Relay

Gems Sensors Float Switch

The Gems Sensors float switch is designed for higher temperatures and in pressurized or corrosive liquids. It is an exceptionally accurate and rugged switch.
It has mounting thread G1/4in

Warning:
The cable entry point must not be submerged under any circumstances
They must be fitted through the wall of a tank on the horizontal switches so that the cable is on the outside
On the vertical type, the mounting thread and cable entry must be above the highest level of the liquid

Features and Benefits

Operating pressure is 30bar
Depth of immersion is 30mm
Min SG of liquids is 0.75
Reed switch is SPST 100V

Certifications

IP64 rated

Gems Switches Technical Overview

Single level switches LS-1900, LS-1900T, LS-1950E, LS-74780

LS-1900 Specifications

Switch Rating Information (Page 4)
