020-3490, Flow Switch Gems Sensors FS-200E-A

3957218
Номер производителя: 020-3490Производитель: Gems Sensors
Цена за шт.
94860.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

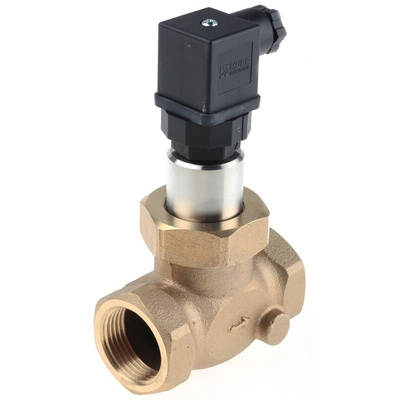

Gems Sensors Flow Switch

The Gems Sensors FS-200E-A series flow switch has a liquid flow rate of 19L/min to 57L/min. This flow switch is a highly efficient device for accurate flow detection. It has 1% repeatability and is available in European G1in port size. The durable construction delivers long life repeatability in either water or oil. On the other hand, the design of large flow paths keeps the pressure drop low. Thus, it is ideal for detection of flow in high volume lubrication, cooling, or process applications.

Features and Benefits

Pipe diameter range is 1in
Connection type is 1 BSP
Plug type connector
Primary construction material is bronze
Setting type: adjustable
Operating pressure is 27bar
Pressure drop is 0.2bar
SPDT switching function
Connection type is 1 BSP

Applications

Protect bearings or gears: oil separators, fuel systems, pumps, compressors and presses
Electronics or machinery: heat exchangers, semiconductor manufacturing equipment, induction furnaces and radio transmitters
Process systems: water filtration and reverse osmosis, chlorinates, de-icers, sterilisers and evaporators

Certifications

IP65 rated

Техническая спецификация
pdfGems Switches Technical Overview
pdfFS-200E Series Flow Switches
Диапазон диаметра трубы:
1 in
Максимальное давление:
27бар
Максимальный рейтинг расхода:
57 Л/мин
Материал:
Бронза
Минимальная скорость потока:
19 Л/мин
Мониторинг информации:
Liquid
Напряжение питания:
250 В
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Серия:
FS-200E-A
Соединение - тип:
1 BSP
Тип девайса:
Shuttle
