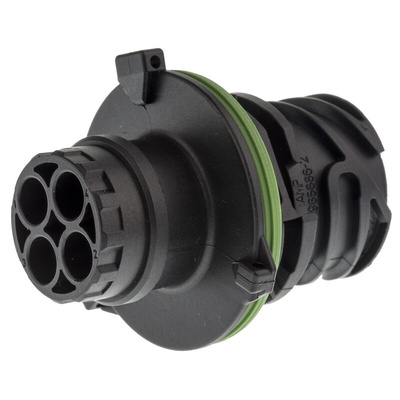

1-967402-2, TE Connectivity 3 Pole Din Plug, Male, Panel Mount, Разъем

Cable Plugs and Sockets

TE Connectivity's range of AMP DIN 72585 round connectors are a 7-position connector housing. These connectors boast vibration protection, resistance to physical shock, wide operating temperatures and a single wire sealing system. Made from a strong glass filled PBT these 7-way connecters make great use for conduit attachments. On the shell housing is a coloured sealant ring to provide an IP67 rating. The AMP DIN 72585 7-position connectors boast amazing reliability and strength.

Features and benefits:

•Rugged and highly reliable design
•IP67 rating to protect against the harshest of conditions
•Housed in a strong glass filled PBT
•Operating temperatures of -40°C to +120°C

Applications:

•Off-road automotive
•Heavy duty industrial use
•Agricultural applications
•Trucks & busses

IP67 Rating:

An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.

TE Connectivity DIN Connector

The TE Connectivity DIN connector is round with pins arranged in a circular pattern within the connector. It is a 3-pole male DIN plug cable has outlets suitable for conduit attachments. A standard shell size allows the use of back shells for all the parts.

Features and Benefits

• Panel mount device
• Resistant to physical shock
• Single wire sealing system
• Terminal method is crimp
• Vibration proof
• Wide temperature range
• Wire-to-wire connector system

Applications

• Automation technology
• Control engineering
• Medical instrumentation

Certifications

• IP67 rated
• IP69K rated

AMP DIN 72585

Based on DIN 72585, this range of sealed connectors has been developed to meet the demand for superior performance.

Vibration proofed
Resistant to physical shock
Wide temperature range
Single wire sealing system

Drawing

Datasheet - 1-967402-2
