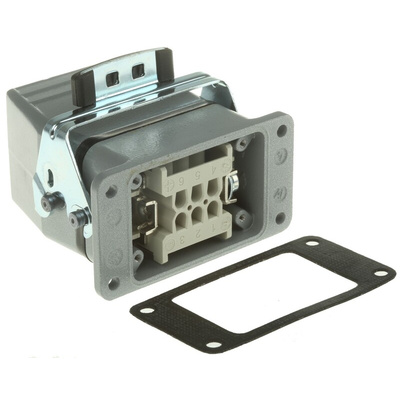

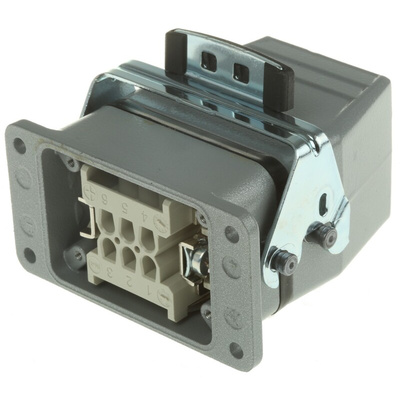

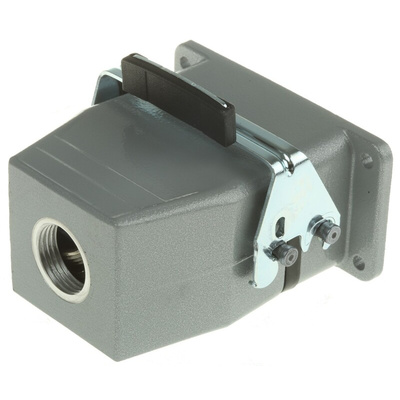

19011000 +10003000 + 10191000, Epic Contact Connector Set, 6 Way, 16A, Female to Male, H-BE, 440 V

H-BE Complete Metric Single Locking Lever Kits

From Contact Connector, this locking lever kit is for EPIC H-BE series heavy duty connectors.

Approvals

UL listed, CSA certified, SEV

LAPP Connector Set, 6 Contacts, 16A Current Rating - Epic Contact Series - 19012000 + 10003000 + 10191000

Link power cables to your heavy-duty industrial equipment with this robust connector set from LAPP. Supplied as a single unit consisting of a connector insert and two housings, this unit is designed for use in harsh environmental conditions. Its inner housing is made of powder-coated aluminium material that's durable and long-lasting. The outer hood provides reliable dust protection to the connector insert, making this assembly suitable for both indoor and outdoor use.

Features & Benefits

• Wide operating temperature range of -40°C to +100°C for use in extreme conditions
• Screw termination method is easy and requires no special tools
• 16A current rating is suitable for high-current applications
• Copper alloy contacts for a reliable connection

Applications

• Oil and gas plants
• Chemical production facilities
• Mining and construction equipment

What's the voltage rating of this connector set?

This connector set has a voltage rating of 440V, making it suitable for low-voltage applications.

Approvals

UL listed; CSA certified; SEV

Complete metric kits
Top or side entry hoods
Panel bases
Male & female screw termination inserts
Metric threaded cable glands

EPIC H-BE Connector Kit Data Sheet

EPIC DA-VINCI H-B Tüllengehäuse / Hood / Capot

EPIC Rechtecksteckverbinder / Rectangular Connectors / Connectuer Rectangulaire - General Specifications

EPIC H-BE Kontakteinsätze / Contact Inserts / Inserts le Contact
