10102000+10196000+10197000+191, Epic Contact Connector Set, 24 Way, 16A, Female to Male, H-BE, 440 V

H-BE Complete Metric Double Locking Lever Kits

LAPP Female to Male Connector Set, 24 Contacts, 16A Current Rating - Epic Contact Series - 10102000+10196000+10197000+191

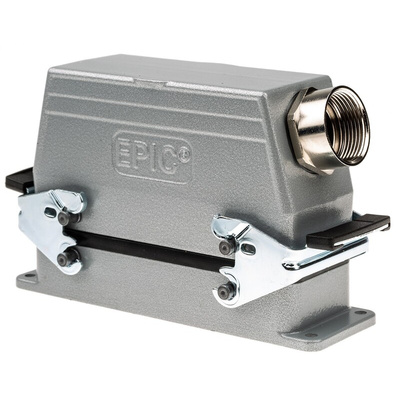

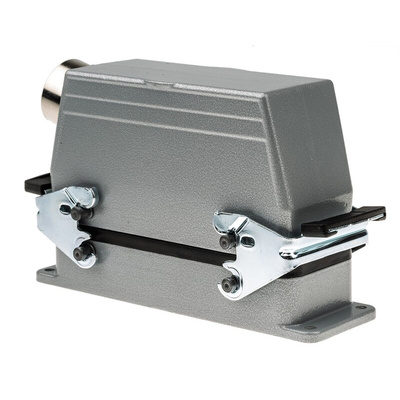

Use this 24-way female-to-male connector set from LAPP to make a power connection that can withstand demanding industrial environments. Double interlocking levers hold the coupled hood and base tightly together to shut out dust and dirt. Screw terminals with wire protection leaves help you to make a secure connection. As the hard silver-plated copper alloy contacts won't corrode, you can be sure of excellent conductivity for the long term.

Features & Benefits

• Glass-reinforced thermoplastic inserts are fitted with an earth termination that's separate from the shell for maximum safety
• Aluminium hood and base have a stove-enamelled finish for durability
• Side entry hood lets you build a compact system

Applications

• Robotics systems
• Industrial automation
• Rail applications

What's the connector's voltage rating?

This connector has a rating of 440V, so is suited to low-voltage equipment.

What's the connector's thread size?

The connector has an M25 thread size for easy compatibility with your system.

Approvals

UL listed; CSA certified; SEV

Complete metric kits
Top or side entry hoods
Panel bases
Male & female screw termination inserts
Metric threaded cable glands
