10420000+10421000+10422500+194, Epic Contact Panel Kit, 3 Way, 10A, Female to Male, H-A, 250 V

LAPP Heavy Duty Power Connector, Top Connection, M20 Thread - EPIC Series - 10420000+10421000+10422500+194

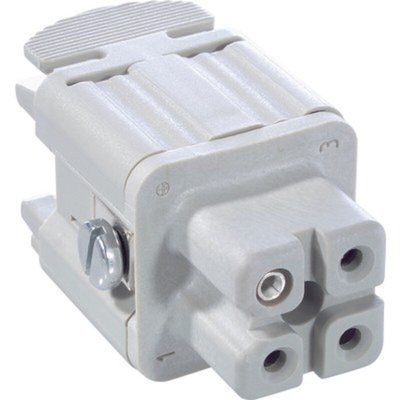

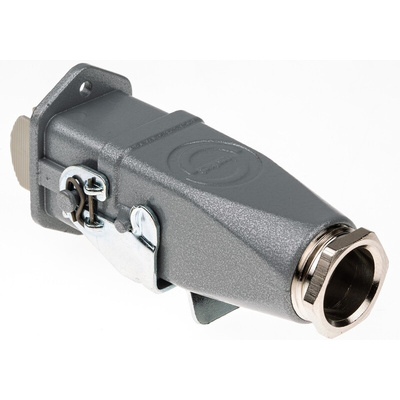

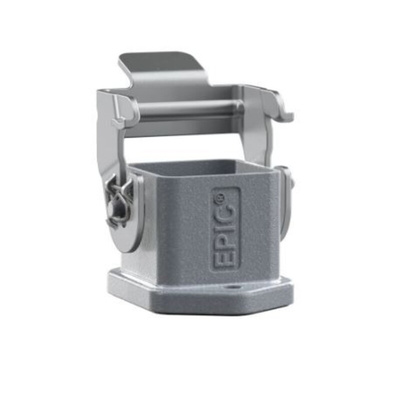

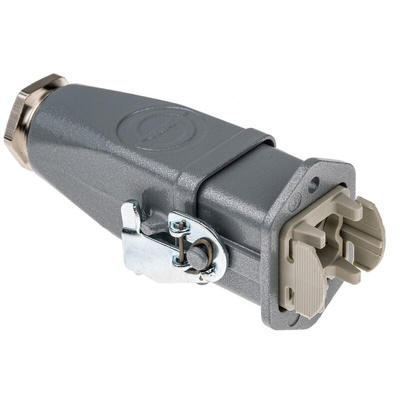

Need a connector that can roll with the punches from your industrial systems? This heavy duty three-way power connector from LAPP is your go-to. A built-in hood provides a shield against dirt and moisture, so harsh conditions won't trip up your electrical connection. The unit's designed to take circular cables sized up to 2.5mm² and, as you can switch the inserts of the plug and socket to adapt it to different surfaces, it's a versatile choice.

Features & Benefits

• Copper alloy contacts are plated in silver for resistance to corrosion
• Screw terminals ensure a stable wire connection
• Tough metal alloy body resists hard impacts so takes the strain in demanding settings

Applications

• Assembly lines
• Robotics systems
• Agricultural equipment

What's the operating temperature range of this connector?

A wide operating temperature range between -40°C and +125°C means you can rely on this connector in challenging environments.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry
Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket

EPIC H-A Connector Kit Data Sheet
