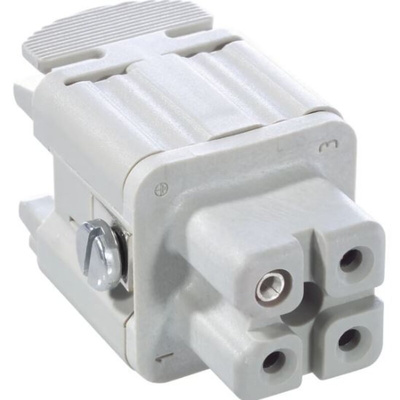

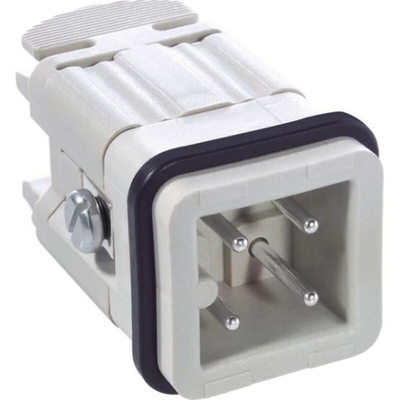

10420000+10421000+10423500+194, Epic Contact Connector Set, 3 Way, 10A, Female to Male, H-A, Screw, 250 V

LAPP Heavy-Duty Power Connector, With Inserts, Screw Terminals - EPIC Series - 10420000+10421000+10423500+194

Looking for an electrical coupling that won't let you down in harsh conditions? Choose this heavy-duty power connector set from LAPP. It's designed to resist impact and wear, with screw-in terminals that won't budge. Hard silver-plated copper alloy contacts are the dream team, bringing together the elements of top-notch conductivity and strength. The connector's top-entry hood is easy to access, so allows for snappy assembly.

Features & Benefits

• Corrosion-resistant, making it suitable to use in humid settings
• Interchangeable inserts, allowing for fixed plug and free cable mounting arrangements
• Insulated for safety, so protects against electric shocks

Applications

• Automotive industry
• Equipment manufacturing
• Laboratory equipment

What's the operating temperature range of this connector set?

This heavy-duty power connector set has an operating temperature range between -40°C and +125°C, making it suitable for challenging environments.

Approvals

UL listed; CSA certified; SEV

Metal Plug & Socket Kits

Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy
Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts
Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details)
Although of compact physical size this range is also rated to 250Vac working for group C (Industrial)

Dimensions: 3 and 4-way

H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components.
3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies.

Dimensions: 10 and 16 way

Cable plug, side entry

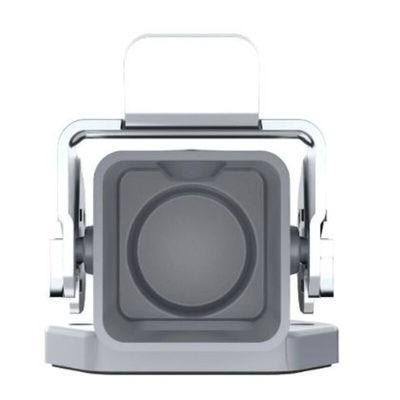

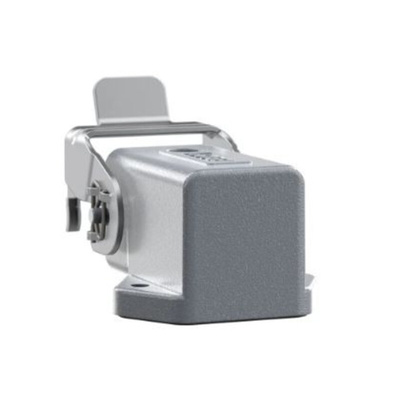

Surface mtg socket
Panel mtg socket
Cable plug, top entry

Dimensions: 32//48 way - gland size PG29

Cable plug, side entry
Cable plug, top entry
Surface mtg socket (32 way only)
Panel mtg socket
